About this product

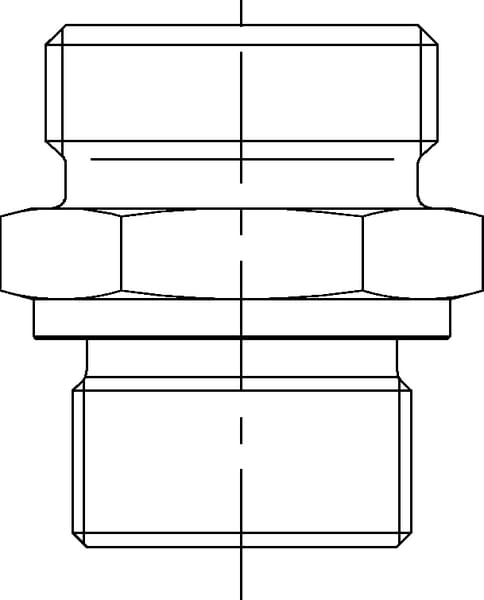

A straight screw-in hydraulic coupling body from the 6L series, connecting an M12 × 1.5 mm BSP male cutting ring fitting to a 1/4 in BSP male seal ring fitting. The coupling is supplied as a single piece and conforms to DIN 2401, DIN 2353, DIN 228 and DIN 3852, as well as ISO 228. The body measures 29 mm in height with a 6 mm diameter on the cutting ring side. The M12 cutting ring connection has a thread length of 12 mm and requires a 19 mm wrench; the 1/4 in seal ring connection has a wrench size of 14 mm. The seal ring is made from nitrile rubber (NBR), and the body is finished with nickel and zinc plating for corrosion resistance. Maximum working pressure is 500 bar, and maximum tightening torque is 50 N·m. The coupling connects directly to metric hose glands or pre-assembled couplings and is not suitable for 4-layer hose (4SP). The product weighs 28 g.
Product details

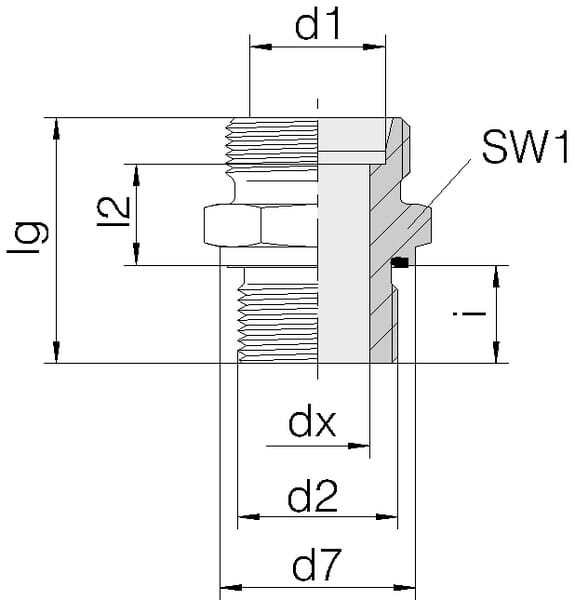

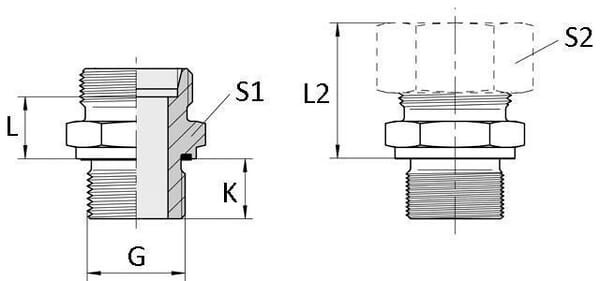

| Body height | 29 mm |
|---|---|
| Connection 1, thread diameter | M12 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | BSP |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, threads per inch | 19 |
| Connection 2, thread type | BSP |
| Connection 2, type | Seal ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 14.0 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| dxInside diameter | 4 mm |
| GConnection no 1 diameter | 6 mm |
| iConnection no 1 thread length | 12 mm |
| ISO standard | 228 |
| L2Connection no 1 center to end distance | 24.5 mm |
| LConnection 2, centre to end distance | 10 mm |
| Max. tightening torque | 50 N·m |
| Max working pressure | 500 BAR |
| Product details | Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose, Hydraulic pipes - Do not use for 4-layer hose HDR (4SP) |
| Pros | Reduced risk of leakage |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 6L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| SW1Connection no 1 wrench size | 19.0 mm |
| Unit | Each |

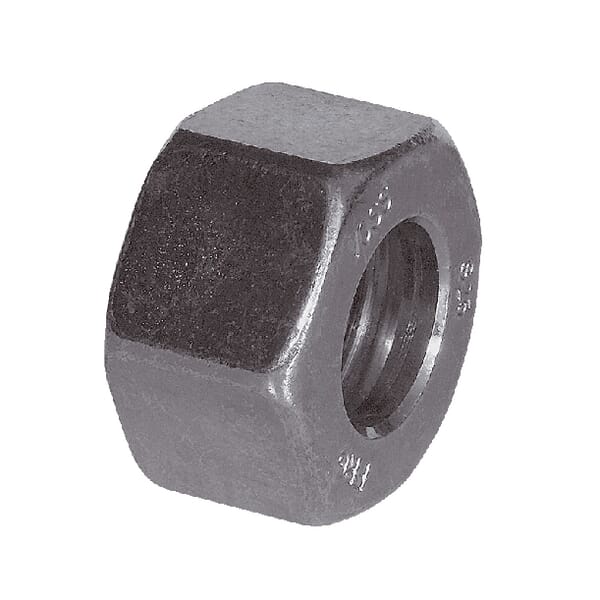

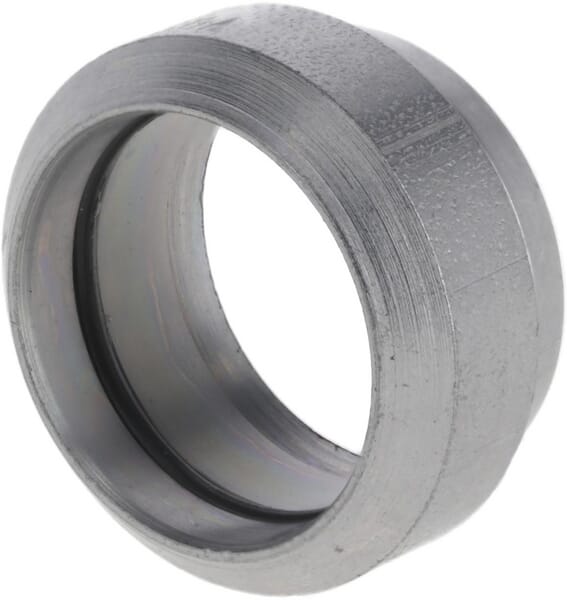

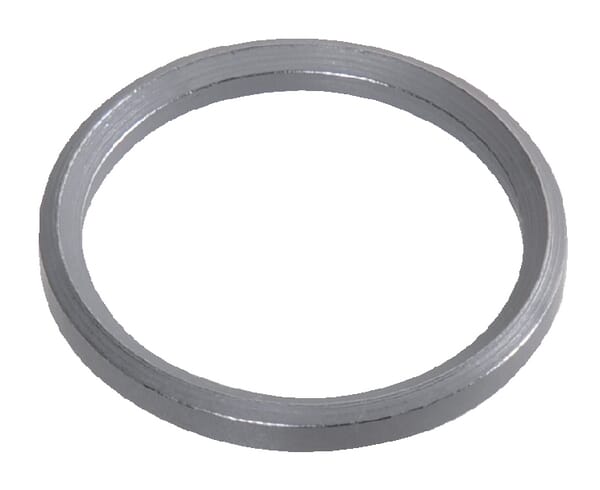

Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 28 g |
| Dimensions | 29 × 19 × 19 mm |
| Dangerous goods | No |
