Roll over image to zoom in · Click to see full view
£3.26
excl. VAT
£3.91 incl. VAT
£3.91
incl. VAT
£3.26 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M14 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M12 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 diameter | 6 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| ISO standard | 228 |

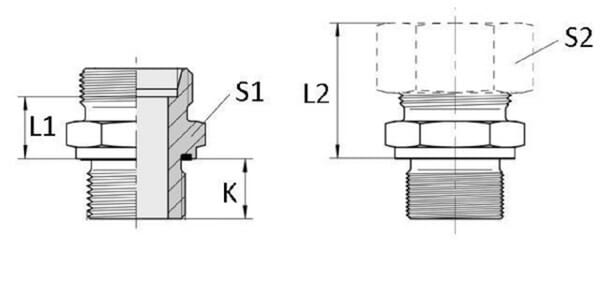

| KConnection no 1 thread length | 12 mm |
| L1Connection 2, centre to end distance | 13 mm |
| L2Connection no 1 center to end distance | 28 mm |
| Long description | Application range:, Hydraulic hose, Hydraulic pipes, Details:, 2S cutting ring, Properties:, Optimised cutting ring connection and functionality, Multiple corrosion resistance |
| Max working pressure | 800 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Connection no 1 wrench size | 17.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 10L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 50 g |
| Dimensions | 42 × 19 × 19 mm |
| Dangerous goods | No |
You might also like
BPA000401981
Voss Seal ring M20x1.5 WDVM2015
£0.87 excl.
£1.04 incl.
In stock
Expected to ship on Friday 2 October
BPA000402392
Voss Angled screw connection WES8LLM10
£5.28 excl.
£6.34 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380902
Voss Adaptor with hex, 1-1/16 JICx1/2 BSP UFA17MJ08FG
£10.82 excl.
£12.98 incl.
In stock
Expected to ship on Friday 2 October
BPA000374284
Voss T piece 4LL R1/8 TEV4LLR18
£10.31 excl.
£12.37 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000298852

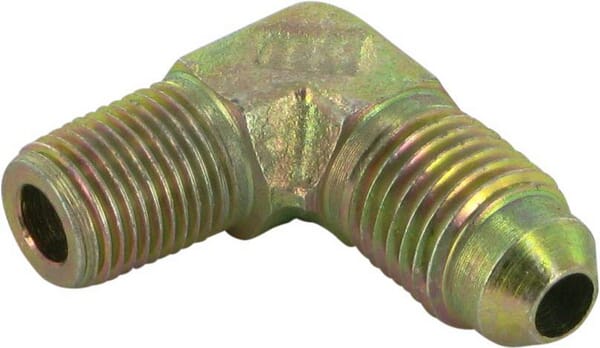

Voss Elbow 7/16JICx1/8BSPT KIBTV0702
