£3.90
excl. VAT
£4.68 incl. VAT
£4.68
incl. VAT
£3.90 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M16 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M14 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 diameter | 8 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| ISO standard | 228 |

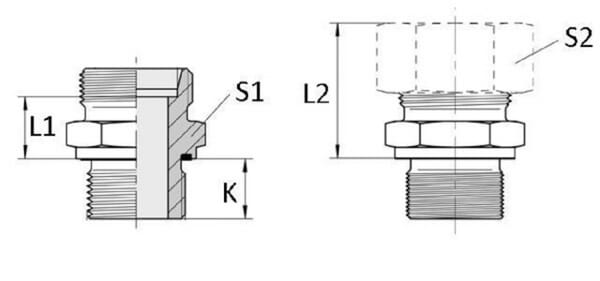

| KConnection no 1 thread length | 12 mm |
| L1Connection 2, centre to end distance | 15 mm |
| L2Connection no 1 center to end distance | 30 mm |
| Max working pressure | 800 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Connection no 1 wrench size | 19.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 8S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 64 g |
| Dimensions | 44 × 21 × 21 mm |
| Dangerous goods | No |
You might also like
BPA000310395
Voss L coupling 8L R1/4 LEV8LRK14
£18.82 excl.
£22.58 incl.
In stock
Expected to ship on Monday 5 October
BPA000348129
Voss Reducing Adaptor M/F (Cs) R1/2 R3/8 REDR1238WD
£5.20 excl.
£6.24 incl.
In stock
Expected to ship on Monday 5 October
BPA000316263

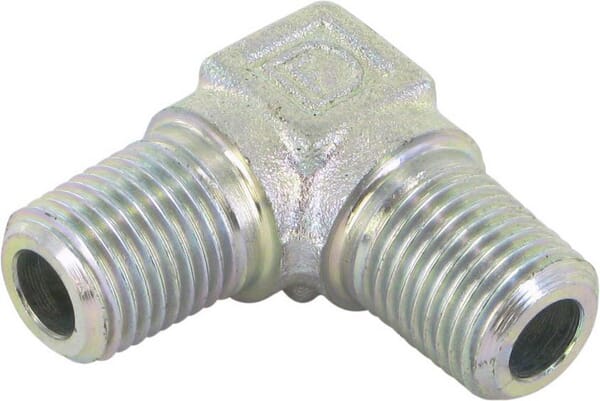

Voss Elbow 1/4 BSPT MMV9004BT
