Roll over image to zoom in · Click to see full view
£20.93
excl. VAT
£25.12 incl. VAT
£25.12
incl. VAT
£20.93 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

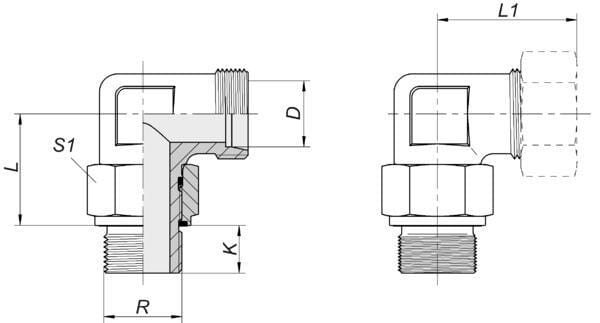

Product details
| Connection 1, thread diameter | M16 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 38 mm |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, threads per inch | 19 |
| Connection 2, thread type | BSPP |
| Connection 2, type | Seal ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 center to end distance | 25 mm |
| Connection no 1 diameter | 8 mm |
| Inside diameter | 2.5 mm |
| KConnection no 1 thread length | 12 mm |
| Material | Steel |
| Max. tightening torque | 50 N·m |
| Max working pressure | 315 BAR |
| Product details | Multiple corrosion resistance, Counter coupling with male thread, Adjustable direction, The adjusted direction is fixed by lock nut |
| Pros | Low risk of leakage |
| S1Connection no 1 wrench size | 19.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 8S |
| Shape | Elbow 90° |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 81 g |
| Dimensions | 55 × 50 × 23 mm |
| Dangerous goods | No |
You might also like

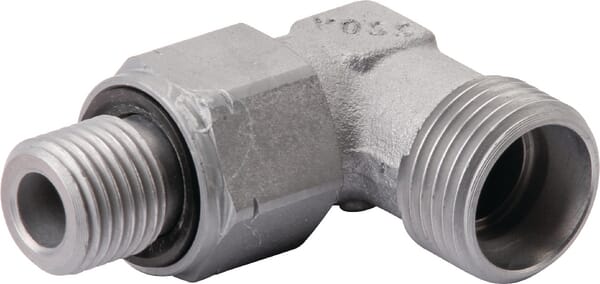

BPA000268296
Voss Coupling+locking nut 8-1/4 EWSC8LR14WD
£17.96 excl.
£21.55 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000348241
Voss 25S 8S coupling REDSD258S
£29.04 excl.
£34.85 incl.
In stock
Expected to ship on Friday 2 October
BPA000288240
Voss Cut ring coupling 38S M52x2,0 - BSP 1 1/4" - Male GES38SR114
£23.14 excl.
£27.77 incl.
In stock
Expected to ship on Friday 2 October
BPA000288114
Voss Coupling 22L 1-1/16UNF GES22L1116UNF
£26.81 excl.
£32.17 incl.
In stock
Expected to ship on Friday 2 October
BPA000287974
Voss Coupling 15L 3/4UNF GES15L34UNF
£16.28 excl.
£19.54 incl.
In stock
Expected to ship on Friday 2 October

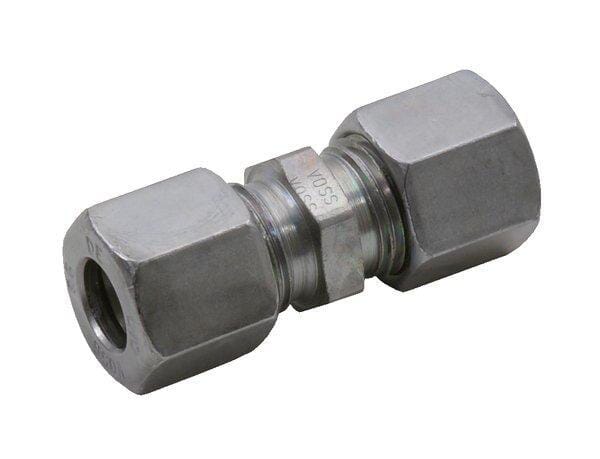

BPA000287512
