£31.25
excl. VAT
£37.50 incl. VAT
£37.50
incl. VAT
£31.25 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Additional info | Compression nuts and olives sold seperately |
|---|---|
| Cone angle | 24 ° |
| Connection 1, thread diameter | M36 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M36 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 46.0 mm |

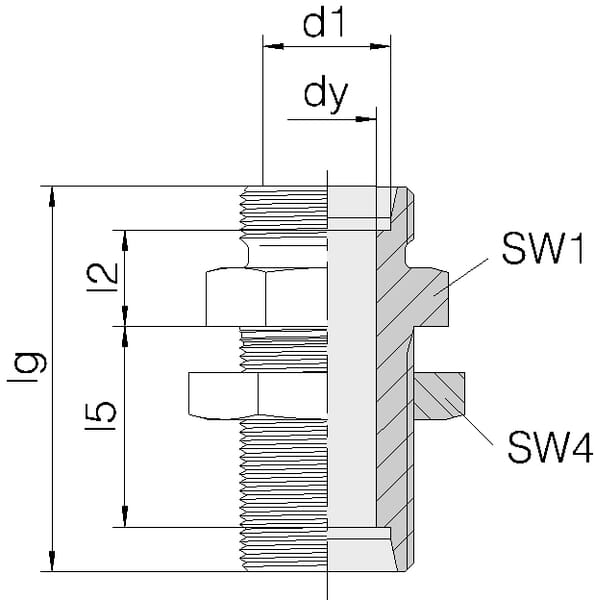

| Connection no 1 diameter | 25 mm |
| d1Connection 2, diameter | 25 mm |
| DIN standard | 80750, 2401, 2353 |
| dyInside diameter | 20 mm |
| IgTotal length | 79 mm |
| Material | Steel |
| Max working pressure | 400 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S2Hexagon nut size | 46 mm |
| Series connection 1 | 25S |
| Series connection 2 | 25S |
| Shape | Straight |
| Surface treatment | Nickel-plated, Zinc |
| SW4Connection no 1 wrench size | 46.0 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 494 g |
| Dimensions | 84 × 53 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000287313
Voss Cutting ring coupling bulkhead 10S GSS10S
£5.98 excl.
£7.18 incl.
In stock
Expected to ship on Friday 2 October
BPA000288246
Voss Coupling 42L 1-1/2NPT GES42L112NPT
£21.42 excl.
£25.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000400081
Voss Elbow Coupling 22L WV22L
£18.65 excl.
£22.38 incl.
In stock
Expected to ship on Friday 2 October
Free shipping
BPA000348145

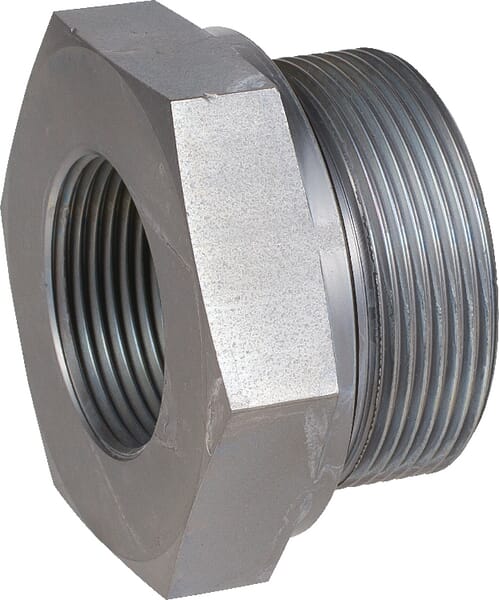

Voss Reducing Adaptor R2-1 1/4 REDR2114WD
