Roll over image to zoom in · Click to see full view
£66.98
excl. VAT
£80.38 incl. VAT
£80.38
incl. VAT
£66.98 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Additional info | Compression nuts and olives sold seperately |
|---|---|
| Cone angle | 24 ° |
| Connection 1, thread diameter | M52 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M52 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 60.0 mm |

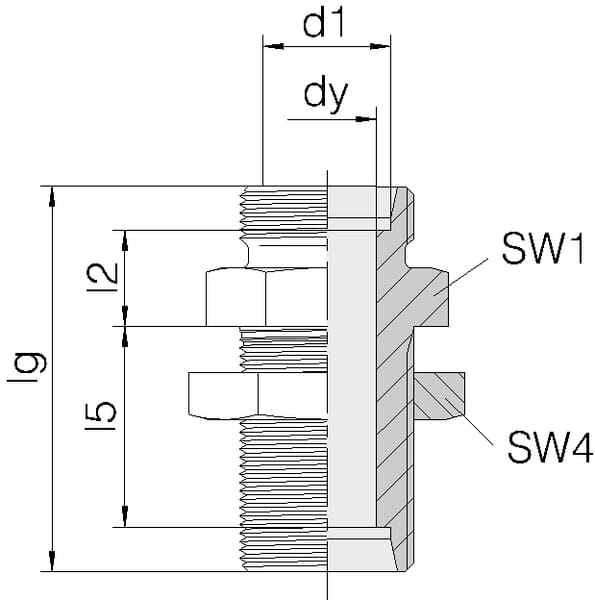

| Connection no 1 diameter | 42 mm |
| d1Connection 2, diameter | 42 mm |
| DIN standard | 80750, 2401, 2353 |
| dyInside diameter | 36 mm |
| i2Connection 2, length | 55 mm |
| IgTotal length | 77 mm |
| Material | Steel |
| Max working pressure | 250 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| Series connection 1 | 42L |
| Series connection 2 | 42L |
| Shape | Straight |
| Surface treatment | Nickel-plated, Zinc |
| SW4Connection no 1 wrench size | 60.0 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 755 g |
| Dimensions | 77 × 69 × 60 mm |
| Dangerous goods | No |
You might also like
BPA000250656

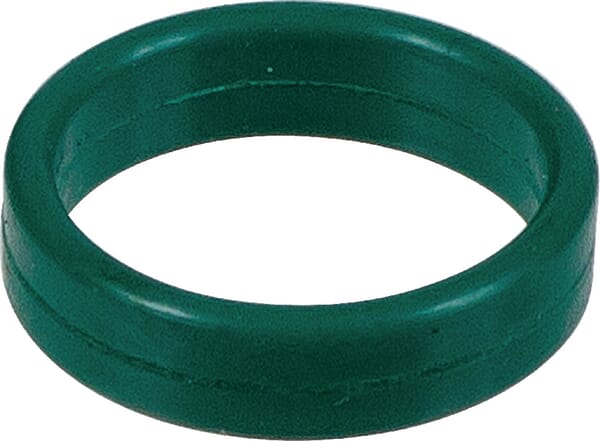

Voss Vossform seal ring 6L/ 6S DVF6LS
£0.69 excl.
£0.83 incl.
In stock
Expected to ship on Friday 2 October
BPA000287518

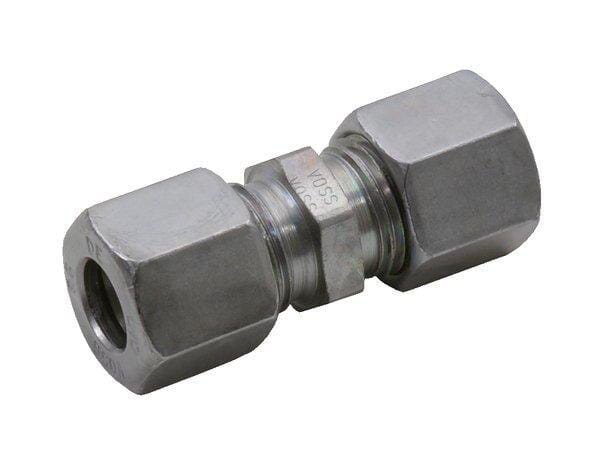

Voss Coupling 8LL GV8LL
