Roll over image to zoom in · Click to see full view
£8.47
excl. VAT
£10.16 incl. VAT
£10.16
incl. VAT
£8.47 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

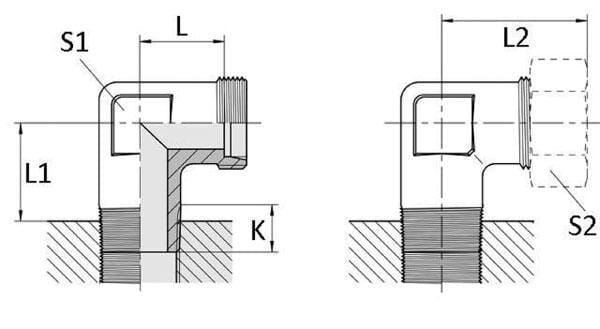

| Body height | 19 mm |
|---|---|
| Connection 1, thread diameter | M18 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type - male/female | Male |
| Connection no 1 diameter | 12 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Includes | Coupling, Cutting ring, Nut |
| ISO standard | 228 |
| KConnection no 1 thread length | 12 mm |
| L2Connection 2, centre to end distance | 20 mm |
| L2Connection no 1 center to end distance | 32 mm |
| Max working pressure | 250 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, complete coupling |
| S1Connection no 1 wrench size | 22.0 mm |
| Series connection 1 | 12L |
| Shape | Elbow 90° |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 118 g |
| Dimensions | 45 × 40 × 20 mm |
| Dangerous goods | No |
