£9.43
excl. VAT
£11.32 incl. VAT
£11.32
incl. VAT
£9.43 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M22 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 15 mm |
| Connection 2, length | 21 mm |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection no 1 center to end distance | 21 mm, 28 mm |
| Connection no 1 diameter | 15 mm |
| DIN standard | 2401, 2353 |
| Inside diameter side 2 | 15 mm |
| L2Connection centre to insert distance | 19 mm |
| Max working pressure | 400 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S2Connection no 1 wrench size | 27.0 mm |
| Series connection 1 | 15L |
| Shape | Elbow 90° |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8716106440535 |
|---|---|
| Unit of measure | EA |
| Weight | 79 g |
| Dimensions | 40 × 40 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000287355
Voss BulkHead Coupling 10S GSV10S
£9.11 excl.
£10.93 incl.
In stock
Expected to ship on Friday 2 October

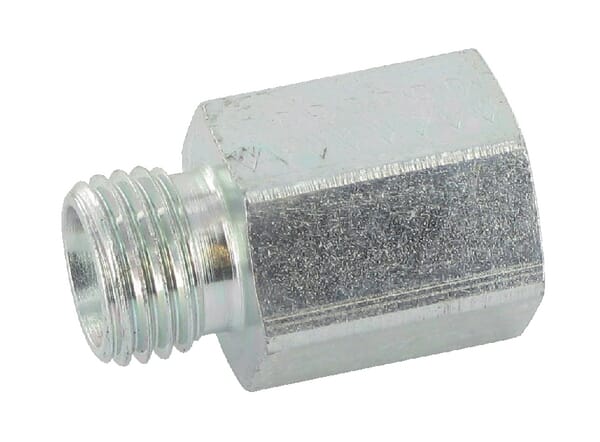

BPA000380905
