Product details
| Body height | 26.5 mm |
|---|---|
| Connection 1, thread diameter | 1/2 Inch |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | BSP |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, threads per inch | 20 |
| Connection 2, thread type | UNF |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 diameter | 8 mm |
| DIN standard | 2401, 2353, 3852 |
| Inside diameter | 4 mm |

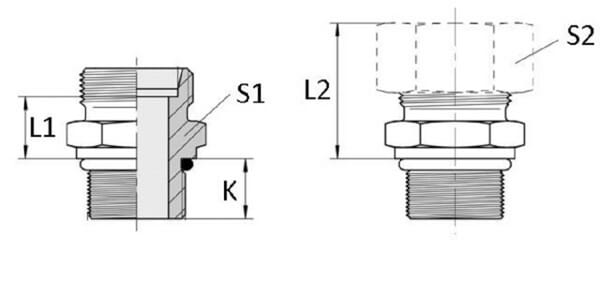

| KConnection no 1 thread length | 9.2 mm |
| L1Connection 2, centre to end distance | 10 mm |
| L2Connection no 1 center to end distance | 25 mm |
| Max. tightening torque | 28 N·m |
| Max working pressure | 500 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes, Viton seal available on request, SAE standard : 514 |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 17.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 15L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 22 g |
| Dimensions | 27 × 20 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000348254
Voss 30S 12S coupling REDSD3012S
£27.44 excl.
£32.93 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000268321

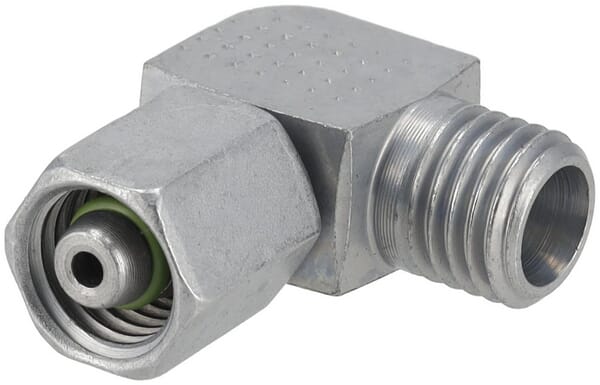

Voss Swivel elbow 90° M26x1.5 18L EWSD18L
£12.40 excl.
£14.88 incl.
In stock
Expected to ship on Monday 5 October
BPA000288565
Voss Coupling 30S 1-1/4NPT GEV30S114NPT
£27.14 excl.
£32.57 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000374270

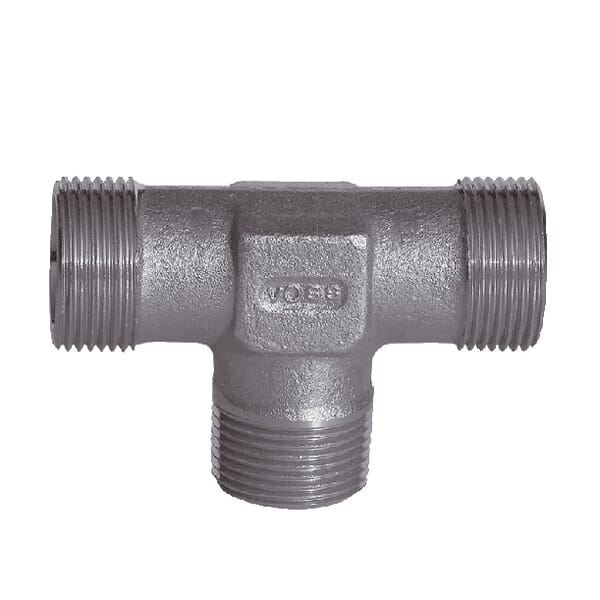

Voss T piece 8S R1/4 TES8SR14
