Product details
| Connection 1, thread diameter | M36 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 25 mm |
| Connection 2, length | 30 mm |
| Connection 2, thread diameter | M36 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 46.0 mm |

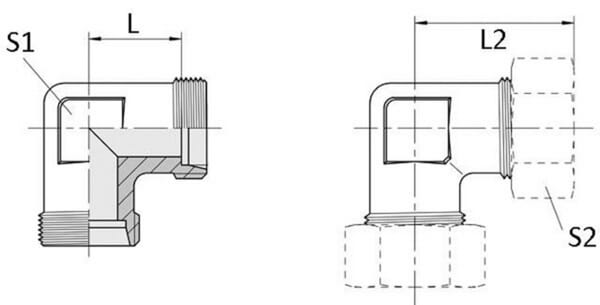

| Connection no 1 center to end distance | 30 mm, 42 mm |
| Connection no 1 diameter | 25 mm |
| DIN standard | 2401, 2353 |
| Inside diameter side 2 | 25 mm |
| L2Connection centre to insert distance | 36 mm |
| Max working pressure | 420 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S2Connection no 1 wrench size | 46.0 mm |
| Series connection 1 | 25S |
| Shape | Elbow 90° |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | 8719607011518 |
|---|---|
| Unit of measure | EA |
| Weight | 420 g |
| Dimensions | 59 × 59 × 36 mm |
| Dangerous goods | No |
You might also like
BPA000288312
Voss Cut ring coupling 06S M14x1,5 - BSP 1/2" - Male GES6SR12
£14.37 excl.
£17.24 incl.
In stock
Expected to ship on Friday 2 October
BPA000258498
Voss Adjustable male stud 8L ELS8L
£8.91 excl.
£10.69 incl.
In stock
Expected to ship on Friday 2 October
BPA000399995
Voss 30S coupling WSS30S
£74.32 excl.
£89.18 incl.
In stock
Expected to ship on Friday 2 October
BPA000399906
Voss Elbow Coupling 30S WS30S
£36.76 excl.
£44.11 incl.
In stock
Expected to ship on Friday 2 October
BPA000288564
Voss Coupling 28L R3/4 GEV28LR34WD
£25.63 excl.
£30.76 incl.
In stock
Expected to ship on Friday 2 October
BPA000355188

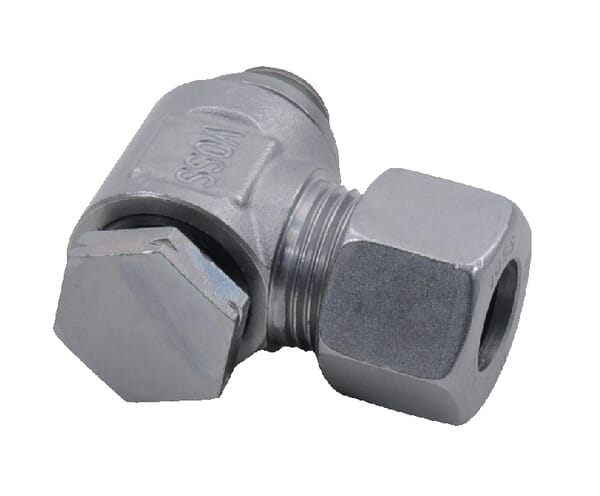

Voss Banjo coupling 10S R3/8 RSWV10SR38
