Roll over image to zoom in · Click to see full view
£74.32
excl. VAT
£89.18 incl. VAT
£89.18
incl. VAT
£74.32 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

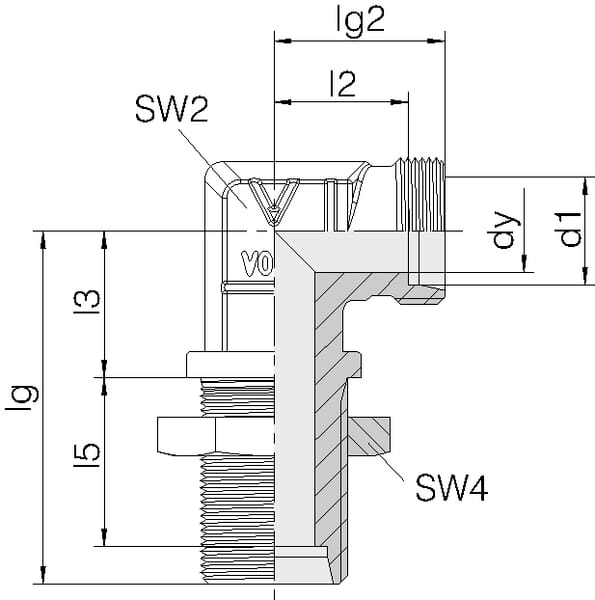

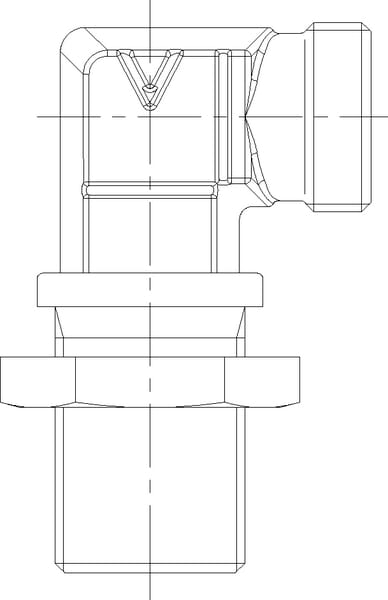

Product details
| Body height | 50 mm |
|---|---|
| Cone angle | 24 ° |
| Connection 1, thread diameter | M42 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 30 mm |
| Connection 2, thread diameter | M42 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection no 1 center to end distance | 39 mm, 90 mm |
| Connection no 1 diameter | 30 mm |
| Connection no 1 wrench size | 50.0 mm |
| DIN standard | 80750, 2401, 2353 |
| Hexagon nut size | 50 mm |
| Includes | Cutting ring coupling, Bulkhead nut included, Without cutting ring and nut |
| Inside diameter | 25 mm |
| Material | Steel |
| Max working pressure | 400 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| Series connection 1 | 30S |
| Series connection 2 | 30S |
| Shape | Bulkhead 90° |
| Surface treatment | Nickel-plated, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1008 g |
| Dimensions | 113 × 72 × 53 mm |
| Dangerous goods | No |
You might also like
BPA000402379
Voss Elbow coupling 6L R1/8 WES6LRK18
£4.52 excl.
£5.42 incl.
In stock
Expected to ship on Friday 2 October
BPA000287342
Voss Cutting ring coupling bulkhead 42L GSS42L
£66.98 excl.
£80.38 incl.
In stock
Expected to ship on Friday 2 October
BPA000287202

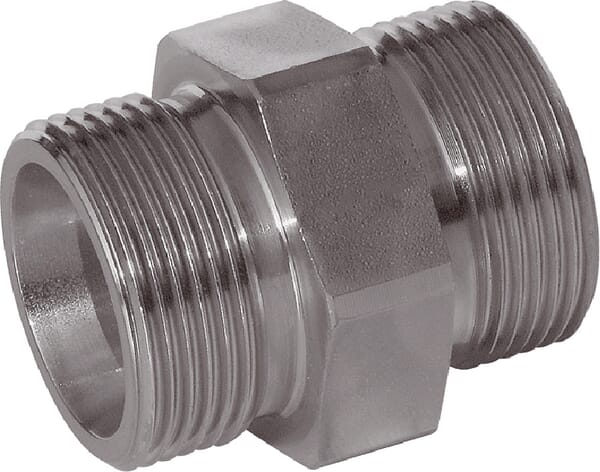

Voss Straight Adaptor (no M/R) 25S GS25S
