Product details

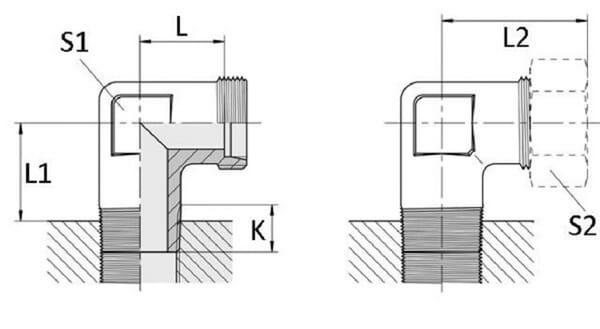

| Body height | 36 mm |
|---|---|
| Connection 1, thread diameter | 1 Inch |
| Connection 1, thread type | BSP |
| Connection 2, centre to end distance | 32.5 mm |
| Connection 2, diameter | 28 mm |
| Connection 2, thread diameter | M36 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type - male/female | Female |
| Connection no 1 center to end distance | 47 mm |
| Connection no 1 diameter | 25 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| ISO standard | 228 |
| L1Connection no 1 thread length | 23 mm |
| Max working pressure | 100 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S2Connection no 1 wrench size | 41.0 mm |
| Series connection 1 | 28L |
| Shape | Elbow 90° |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 431 g |
| Dimensions | 62 × 57 × 37 mm |
| Dangerous goods | No |
