Roll over image to zoom in · Click to see full view
£6.30
excl. VAT
£7.56 incl. VAT
£7.56
incl. VAT
£6.30 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

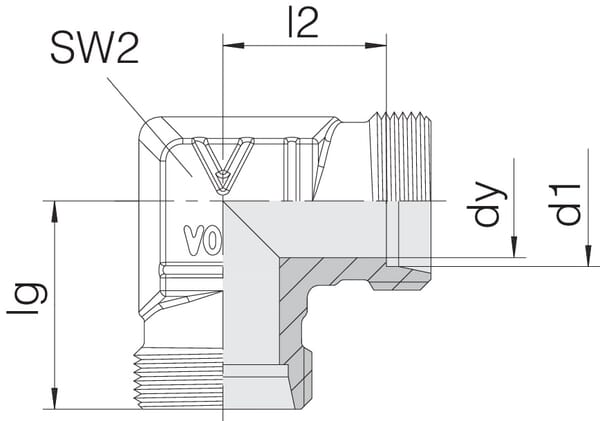

Product details
| Connection 1, thread diameter | M14 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 6 mm |
| Connection 2, length | 16 mm |
| Connection 2, thread diameter | M14 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 center to end distance | 16 mm, 23 mm |
| Connection no 1 diameter | 6 mm |
| DIN standard | 2401, 2353 |
| Inside diameter side 2 | 6 mm |
| L2Connection centre to insert distance | 14 mm |
| Max working pressure | 800 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S2Connection no 1 wrench size | 17.0 mm |
| Series connection 1 | 6S |
| Shape | Elbow 90° |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 52 g |
| Dimensions | 31 × 31 × 14 mm |
| Dangerous goods | No |
You might also like
BPA000287899
Voss Coupling 12L R1/4 GES12LR14WD
£2.65 excl.
£3.18 incl.
In stock
Expected to ship on Friday 2 October
BPA000315167

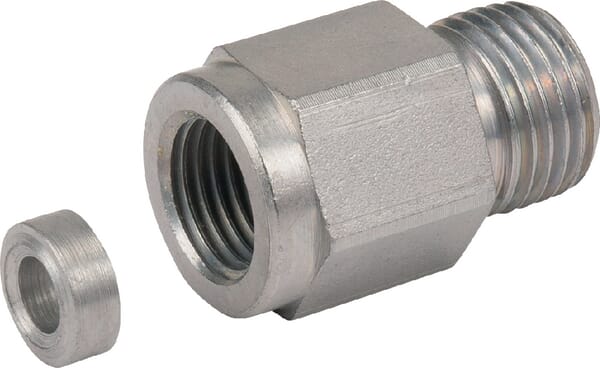

Voss Measuring coupling 8S R1/4 BSP MAS8SR14
