Product details
| Connection 1, thread diameter | M18 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 12 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Female |
| Connection 3, diameter | 12 mm |
| Connection 3, thread diameter | M18 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Cutting ring |
| Connection 3, type - male/female | Female |
| Connection 4, diameter | 12 mm |
| Connection 4, thread diameter | M18 |
| Connection 4, thread pitch | 1.50 mm |
| Connection 4, thread type | Metric |
| Connection 4, type | Cutting ring |
| Connection 4, type - male/female | Female |
| Connection no 1 diameter | 12 mm |
| DIN standard | 2401, 2353 |
| Includes | Coupling, Cutting rings, Gland nuts |
| Inside diameter | 12 mm |

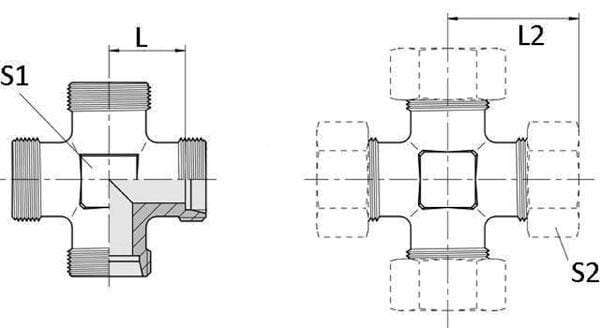

| L2Connection no 1 center to end distance | 32 mm |
| LConnection centre to insert distance | 17 mm |
| Max working pressure | 315 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance - Hydraulic hose, Hydraulic pipes |
| Pros | 2S cutting ring |
| S1Body height | 17 mm |
| S1Connection no 1 wrench size | 22.0 mm |
| Series | 12L |
| Shape | Cross |
| Surface treatment | Nickel-plated, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 190 g |
| Dimensions | 70 × 70 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000400081
Voss Elbow Coupling 22L WV22L
£18.65 excl.
£22.38 incl.
In stock
Expected to ship on Friday 2 October
BPA000247428
Voss Swivel banjo 6S R1/4 DGWEV6SR14
£98.14 excl.
£117.77 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288480
Voss Coupling 12S R3/8 GEV12SR38WD
£4.68 excl.
£5.62 incl.
In stock
Expected to ship on Friday 2 October
BPA000230693
Voss ALEG13ALEN15 coupling ALEG13ALEN15
£7.13 excl.
£8.56 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000258540

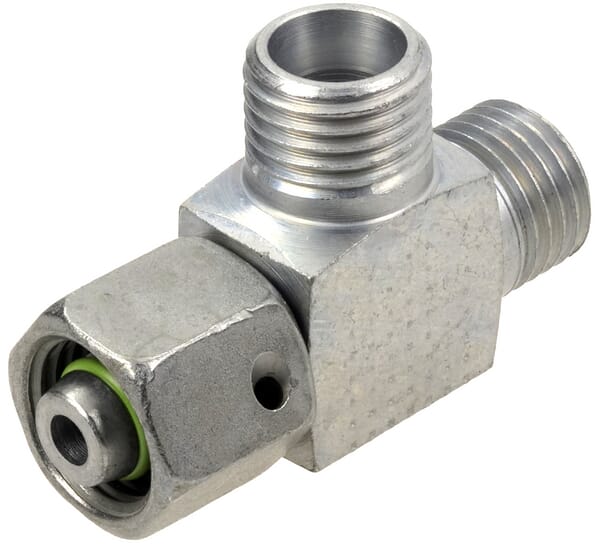

Voss Swivel T piece union F-M-M 6S ELSD6S
