£80.77
excl. VAT
£96.92 incl. VAT
£96.92
incl. VAT
£80.77 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M30 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 22 mm |
| Connection 2, thread diameter | M30 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Female |
| Connection 3, diameter | 22 mm |
| Connection 3, thread diameter | M30 |
| Connection 3, thread pitch | 2.00 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Cutting ring |
| Connection 3, type - male/female | Female |
| Connection 4, diameter | 22 mm |
| Connection 4, thread diameter | M30 |
| Connection 4, thread pitch | 2.00 mm |
| Connection 4, thread type | Metric |
| Connection 4, type | Cutting ring |
| Connection 4, type - male/female | Female |
| Connection no 1 diameter | 22 mm |
| DIN standard | 2401, 2353 |
| Includes | Coupling, Cutting rings, Gland nuts |
| Inside diameter | 22 mm |

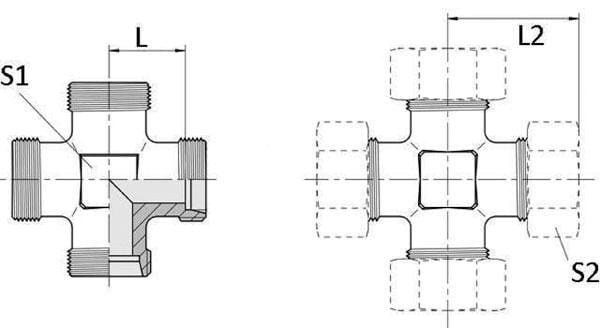

| L2Connection no 1 center to end distance | 44 mm, 27.5 mm |
| Max working pressure | 160 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance - Hydraulic hose, Hydraulic pipes |
| Pros | 2S cutting ring |
| S1Body height | 27 mm |
| S1Connection no 1 wrench size | 36.0 mm |
| Shape | Cross |
| Surface treatment | Nickel-plated, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 620 g |
| Dimensions | 100 × 100 × 43 mm |
| Dangerous goods | No |
You might also like
BPA000258551
Voss Adjustable male stud 14S ELV14S
£27.29 excl.
£32.75 incl.
In stock
Expected to ship on Monday 5 October
BPA000258248
Voss Coupling 22L M26 EGESD22LM26WD
£14.36 excl.
£17.23 incl.
In stock
Expected to ship on Monday 5 October
BPA000380999
Voss Coupling UMAG17x18.150NU UMAG1718150NU
£3.52 excl.
£4.22 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288214
Voss Coupling 35L 1-5/8UNF GES35L158UNF
£39.00 excl.
£46.80 incl.
In stock
Expected to ship on Monday 5 October
BPA000355268
Voss RSWV seal ring metal M27x2 RSWV9VDKM272
£4.19 excl.
£5.03 incl.
Backorder available
Usually ships within 3–8 weeks

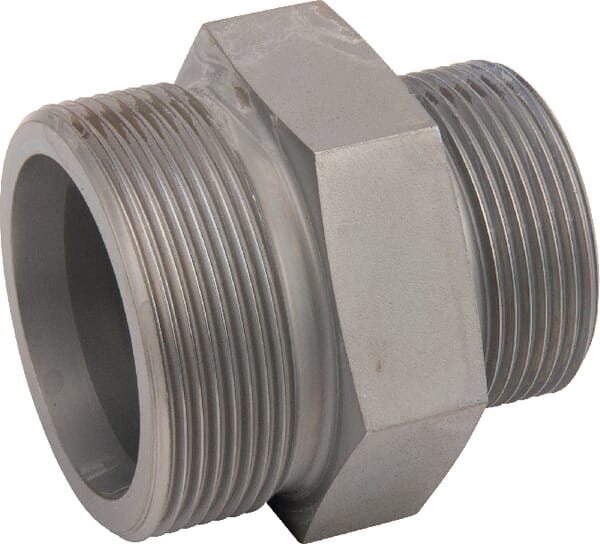

BPA000287217
