Roll over image to zoom in · Click to see full view
£13.21
excl. VAT
£15.85 incl. VAT
£15.85
incl. VAT
£13.21 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M16 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | O-ring cone |
| Connection 1, type - male/female | Female |
| Dedicated pipe wall thickness | 1.5 mm |
| Max working pressure | 800 BAR |
| Pipe diameter | 8 mm |

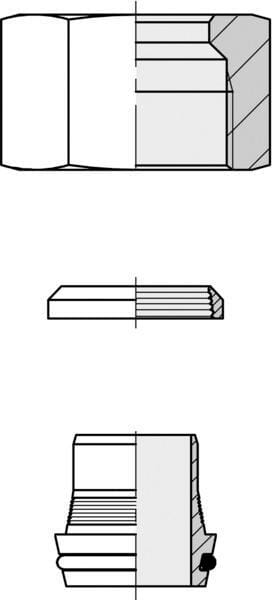

| Product details | Can be applied where cutting ring connections are not sufficient, Can handle extreme loads thanks to 10° flared fitting, Can only be installed with a pre-assembly machine, Assembly in accordance with assembly instructions, Zinc/nickel surface treatment, Complete set (flared fitting, clamping ring and nut) |
| Pros | Pre-assembled coupling with O-ring, Multiple corrosion resistance thanks to standard galvanising, For direct mounting with S-cutting ring connection (body) |
| Series | S |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 34 g |
| Dimensions | 30 × 20 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000288554
Voss Coupling 25S R3/4 GEV25SR34
£24.92 excl.
£29.90 incl.
In stock
Expected to ship on Friday 2 October
BPA000258511
Voss Swivel T piece union F-M-M 14S ELSD14S
£22.52 excl.
£27.02 incl.
In stock
Expected to ship on Friday 2 October
BPA000250640

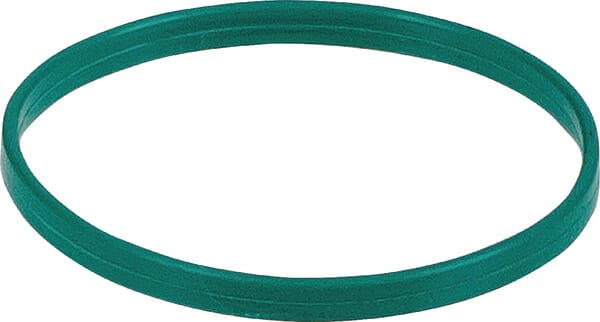

Voss Vossform seal ring 30S DVF30S
£2.25 excl.
£2.70 incl.
In stock
Expected to ship on Friday 2 October
BPA000402451
Voss Elbow Coupling 6L 1/8NPT WEV6L18NPT
£6.25 excl.
£7.50 incl.
In stock
Expected to ship on Friday 2 October
BPA000349178

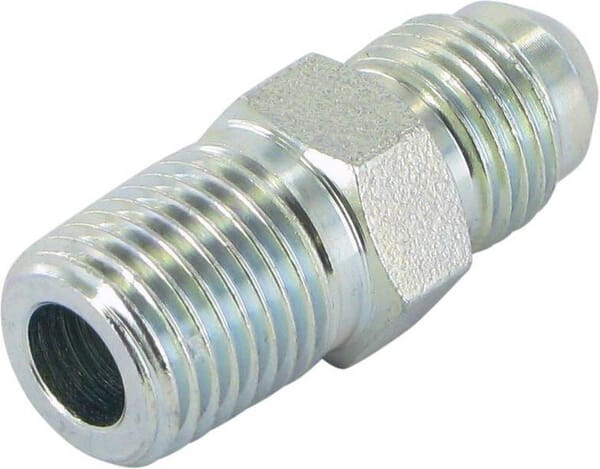

Voss Changeover 1/2 JIC x 1/4 BSPT RIBTV0804
