Roll over image to zoom in · Click to see full view
£4.95
excl. VAT
£5.94 incl. VAT
£5.94
incl. VAT
£4.95 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 31.5 mm |
|---|---|
| Connection 1, thread diameter | M18 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection no 1 diameter | 12 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Inside diameter | 9 mm |
| ISO standard | 228 |
| KConnection no 1 thread length | 12 mm |
| L1Connection 2, centre to end distance | 12.5 mm |
| L2Connection no 1 center to end distance | 27 mm |
| Max. tightening torque | 100 N·m |
| Max working pressure | 400 BAR |
| Product details | Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 24.0 mm |
| Series connection 1 | 12L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | 8716106786169 |
|---|---|
| Unit of measure | EA |
| Weight | 45 g |
| Dimensions | 32 × 28 × 28 mm |
| Dangerous goods | No |
You might also like
BPA000348366
Voss Coupling 38S 10S REDVD3810S
£53.18 excl.
£63.82 incl.
In stock
Expected to ship on Friday 2 October
BPA000268190
Voss Adjustable male stud 20S ETVD20S
£40.17 excl.
£48.20 incl.
In stock
Expected to ship on Friday 2 October
BPA000352698

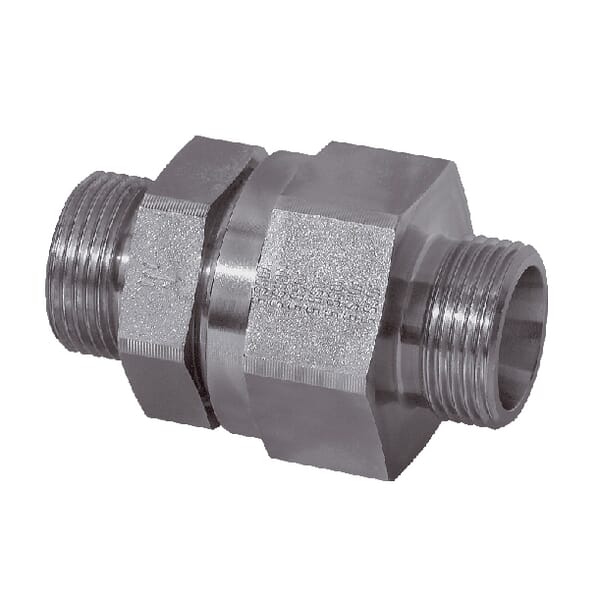

Voss Check valve 18L - 1 bar RVV18L
