£32.44
excl. VAT
£38.93 incl. VAT
£38.93
incl. VAT
£32.44 excl. VAT
In stock
Expected to ship on Tuesday 29 September

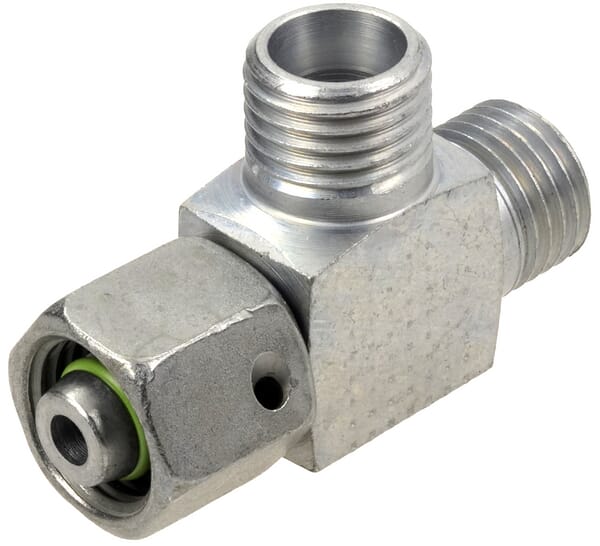

Product details
| Connection 1, thread diameter | M30 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M30 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 36.0 mm |
| Connection 3, length | 55 |
| Connection 3, thread diameter | M30 |
| Connection 3, thread pitch | 2.00 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| DIN standard | 2401, 2353, 3865 |
| Includes | pre-assembled gland |
| Inside diameter | 19.33 mm, 17 mm |

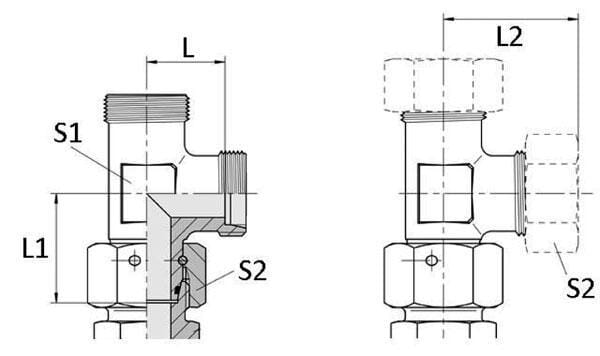

| L1Connection 2, centre to end distance | 38.5 mm |
| L2Connection no 1 center to end distance | 44 mm |
| LConnection 3 centre to end distance | 27.5 mm |
| Max working pressure | 250 BAR |
| Pipe diameter | 22 mm |
| Product details | Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Body height | 27 mm |
| S2Connection no 1 wrench size | 36.0 mm |
| Sealing ring inside diameter | 20 mm |
| Sealing ring thickness | 2 mm |
| Seal material | Nitrile rubber [NBR] |
| Series | L |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 300 g |
| Dimensions | 76 × 55 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000288362
Voss Adaptor 8L-R3/8 GES8LR38ACH60
£9.44 excl.
£11.33 incl.
In stock
Expected to ship on Tuesday 29 September
BPA000348203
Voss 16S 6S coupling REDSD166S
£12.67 excl.
£15.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000315643

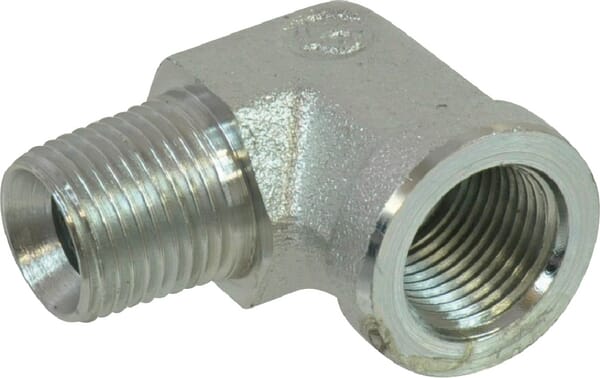

Voss Elbow out/in 1/4 BSPTx1/4 BSP MFV9004BTB
£9.66 excl.
£11.59 incl.
In stock
Expected to ship on Tuesday 29 September
BPA000269955

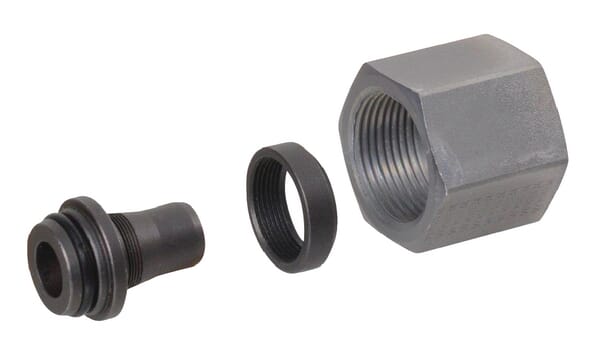

Voss Flared fitting complete 8S 8x1.5 FFCS815
£13.21 excl.
£15.85 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000355234
Voss Swivel banjo (CS) 30S-1 1/4" -WD RSWV30SR114WD
£122.15 excl.
£146.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000298868

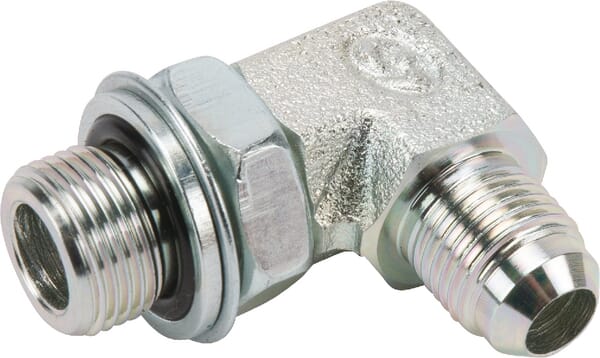

Voss Elbow 9/16JICx1/2BSP KIBV0908OR
