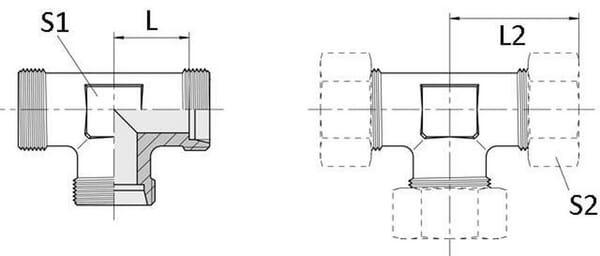

Product details
| Body height | 19 mm |
|---|---|
| Connection 1, thread diameter | M18 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 10 mm |
| Connection 2, length | 17.5 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection 3, diameter | 10 mm |
| Connection 3, thread diameter | M18 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Thread |
| Connection 3, type - male/female | Male |
| Connection no 1 center to end distance | 17.5 mm, 25 mm |
| Connection no 1 diameter | 10 mm |
| DIN standard | 2401, 2353 |
| Inside diameter | 7 mm |
| Max working pressure | 800 BAR |
| Pipe diameter | 10 mm |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 22.0 mm |
| Series | S |
| Shape | Tee (T) |
| Surface treatment | Nickel-plated, Zinc |
| Total length | 50 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 114 g |
| Dimensions | 52 × 35 × 20 mm |
| Dangerous goods | No |
