Roll over image to zoom in · Click to see full view
£6.03
excl. VAT
£7.24 incl. VAT
£7.24
incl. VAT
£6.03 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

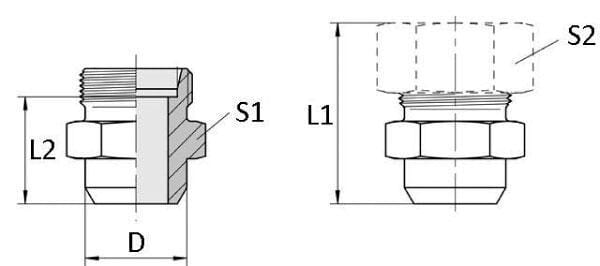

| Connection 1, thread diameter | M24 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 21 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 30.0 mm |
| DConnection no 1 diameter | 16 mm |
| DIN standard | 2401 |
| Includes | Coupling, Cutting ring, Gland nuts |
| L1Total length | 26.5 mm |
| L2Connection centre to insert distance | 45 mm |
| Material | Steel |
| Max working pressure | 400 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| S1Connection no 1 wrench size | 27.0 mm |
| Series connection 1 | 16S |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 160 g |
| Dimensions | 48 × 35 × 30 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000247415

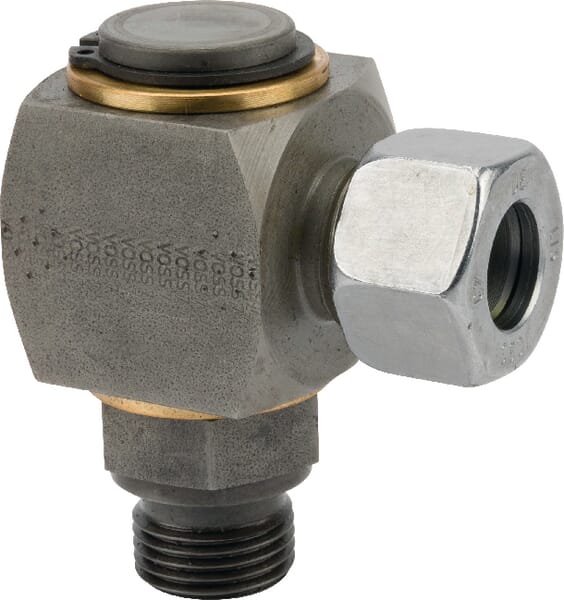

Voss Swivel banjo 15L R1/2 DGWEV15LR12
£173.46 excl.
£208.15 incl.
In stock
Expected to ship on Friday 2 October
BPA000399986
Voss Bulkhead elbow 15L (no M/R) WSS15L
£15.82 excl.
£18.98 incl.
In stock
Expected to ship on Friday 2 October
BPA000230701
Voss CouplingALEN15ALEN12 ALEN15ALEN12
£5.20 excl.
£6.24 incl.
In stock
Expected to ship on Friday 2 October
BPA000279859
Voss Coupling 12L R1/4 GAS12LR14
£18.29 excl.
£21.95 incl.
In stock
Expected to ship on Friday 2 October
BPA000396291
Voss End Plug (Cutting Ring) 22L M30x2 VSK22L
£12.70 excl.
£15.24 incl.
In stock
Expected to ship on Friday 2 October
BPA000310382

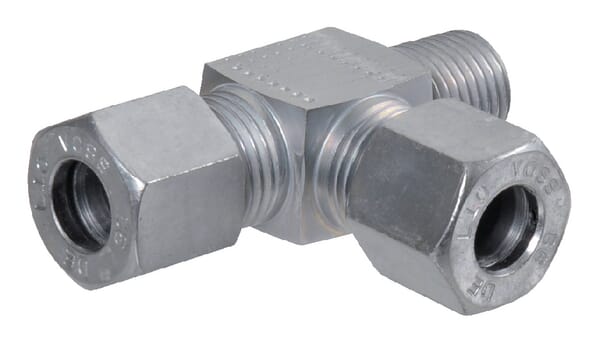

Voss L coupling 12L-M16 LEV12LMK16
