Roll over image to zoom in · Click to see full view
£7.65
excl. VAT
£9.18 incl. VAT
£9.18
incl. VAT
£7.65 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M30 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 27 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 36.0 mm |

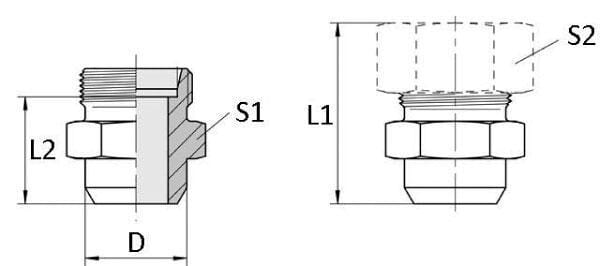

| DConnection no 1 diameter | 22 mm |
| DIN standard | 2401 |
| Includes | Coupling, Cutting ring, Gland nuts |
| L1Total length | 28.5 mm |
| L2Connection centre to insert distance | 45 mm |
| Material | Steel |
| Max working pressure | 160 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| S1Connection no 1 wrench size | 32.0 mm |
| Series connection 1 | 22L |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 190 g |
| Dimensions | 50 × 41 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000287342

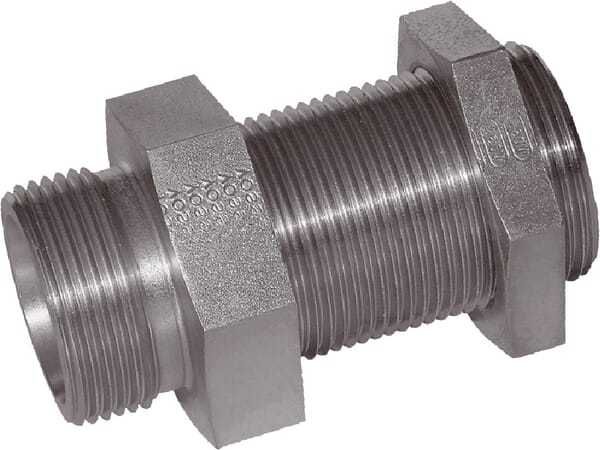

Voss Cutting ring coupling bulkhead 42L GSS42L
£66.98 excl.
£80.38 incl.
In stock
Expected to ship on Friday 2 October
BPA000288559
Voss Coupling 28L M33 GEV28LM33WD
£15.54 excl.
£18.65 incl.
In stock
Expected to ship on Friday 2 October
BPA000355143
Voss Angled banjo coupling RSWS22LR34
£40.93 excl.
£49.12 incl.
In stock
Expected to ship on Friday 2 October
BPA000232667
Voss Weld-on coupling ASV 10L-90' ASV10L90
£7.64 excl.
£9.17 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000268341

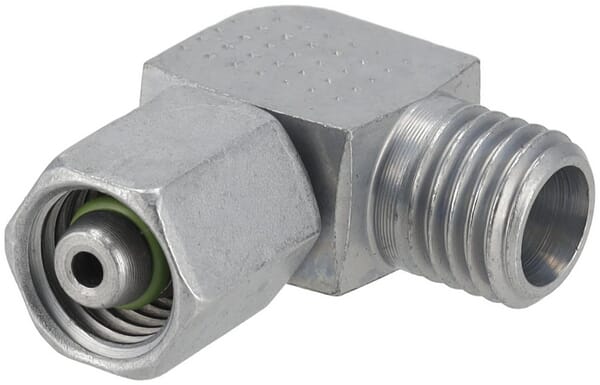

Voss Swivel elbow 90° M12x1.5 6L EWSD6L
