£1,091.72
excl. VAT
£1,310.06 incl. VAT
£1,310.06
incl. VAT
£1,091.72 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Torque retention, Smooth transition, Wide range of applications |
| Clutch type code | EK96/4 |
| Connection locking type | Clamp cone |
| Details | No interruption of power transmission, Absorb peak loads for a short time, Max. torque adjustable via circlip |

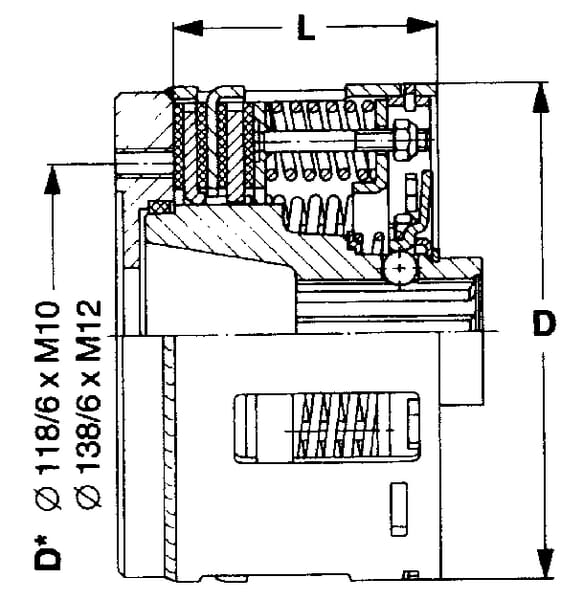

| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/4-6 |
| LClutch part length | 90 mm |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1800 N·m |
| Original number equivalent | 1102299 |
| Properties | Independent of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | W2500, W2600, W2700, W2480, W2580, P480, P580 |
| Suitable for machine/vehicle brand | Case |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11815 g |
| Dimensions | 230 × 210 × 175 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000098310
Walterscheid Yoke, Flange, W2400/P400/W400E 3575100
£331.89 excl.
£398.27 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000143258
Walterscheid Hub F5/2 1.3/4-6spl 561969
£770.87 excl.
£925.04 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000092749

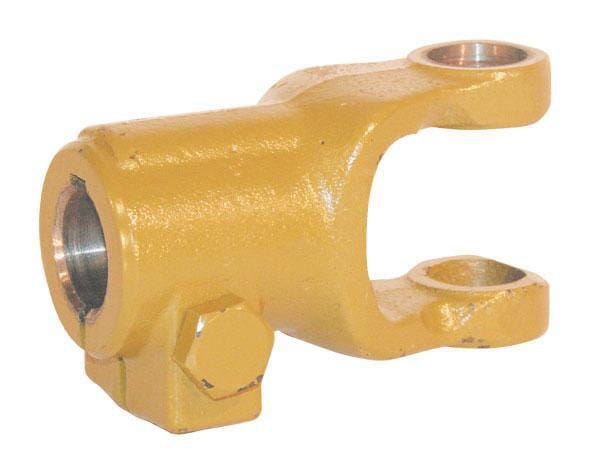

Walterscheid Yoke, Clamp bolt, 40mm, W2400/P400/W400E 351808
£164.61 excl.
£197.53 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000077839
Walterscheid Yoke, Clamp bolt, 1-3/8"-6 spline, W2600/P600 261030
£467.13 excl.
£560.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000184306

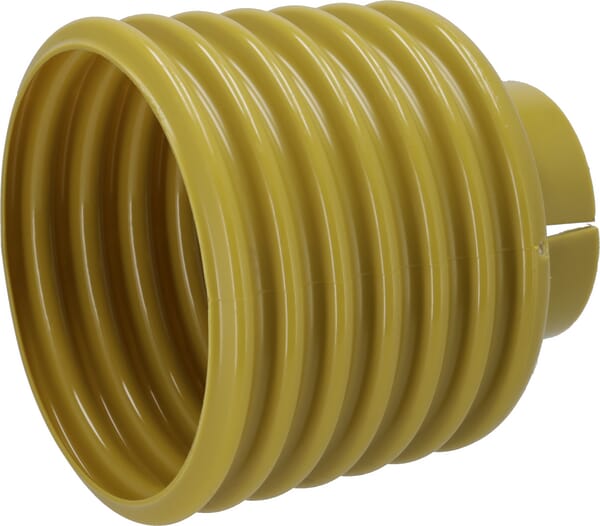

Walterscheid Guard cone 8401115
£53.77 excl.
£64.52 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000144888

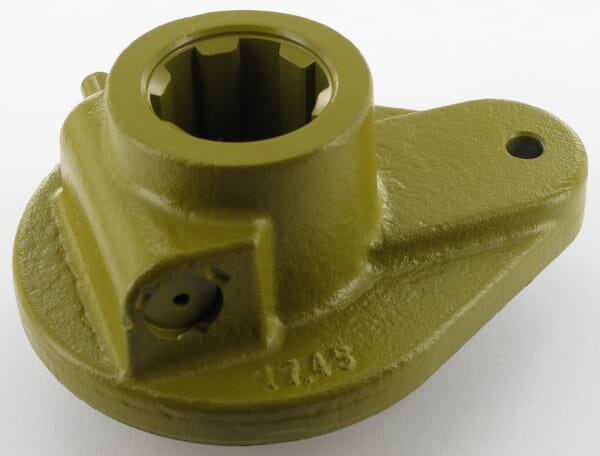

Walterscheid KB61/20 Hub 1.3/8-6 M8 rad.64 572710
