£913.74
excl. VAT
£1,096.49 incl. VAT
£1,096.49
incl. VAT
£913.74 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Torque retention, Smooth transition, Wide range of applications |
| Clutch type code | EK96/4 |
| Connection locking type | Clamp cone |
| Details | No interruption of power transmission, Absorb peak loads for a short time, Max. torque adjustable via circlip |

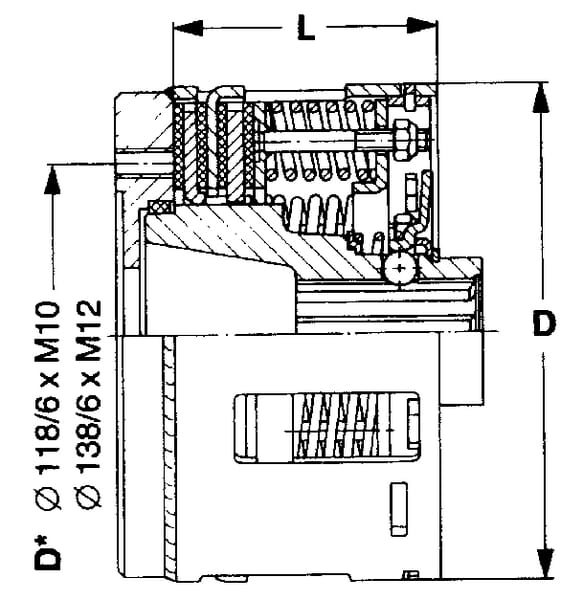

| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/4-6 |
| LClutch part length | 90 mm |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1800 N·m |
| Original number equivalent | 1101748 |
| Properties | Independent of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | W2500, W2600, W2700, W2580, P480, P580 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11625 g |
| Dimensions | 220 × 210 × 170 mm |
| Dangerous goods | No |
You might also like
BPA000356911
Walterscheid PTO inner half guard SD15, L: 1,000mm SD151000IWWZ
£67.13 excl.
£80.56 incl.
In stock
Expected to ship on Monday 21 September
BPA000035159

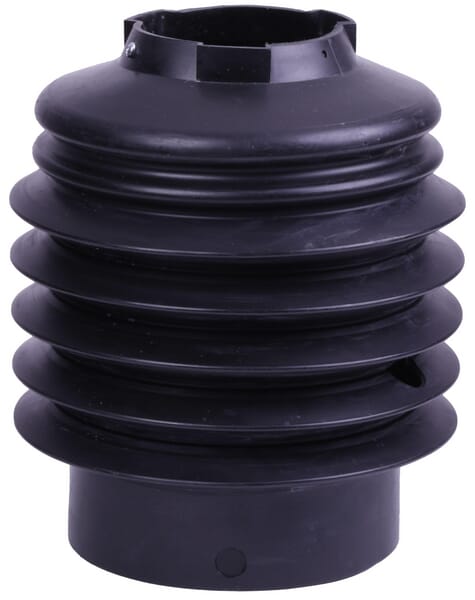

Walterscheid Guard cone 1139405
£65.82 excl.
£78.98 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400808
Walterscheid PTO shaft W2300 L: 1410mm, W23001410
£431.27 excl.
£517.52 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000140517

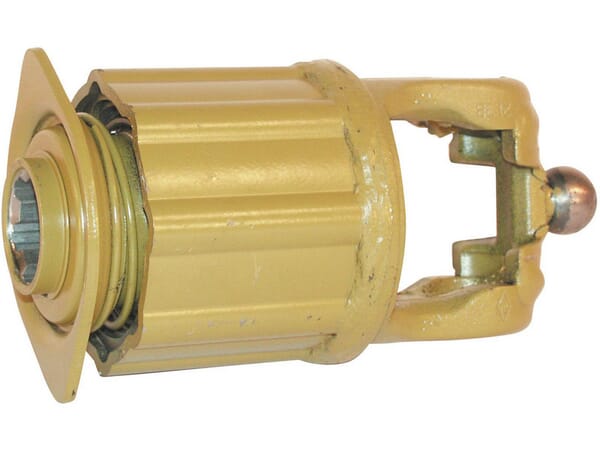

Walterscheid Radial pin clutch K34B withA 5567503100
£639.15 excl.
£766.98 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000095384

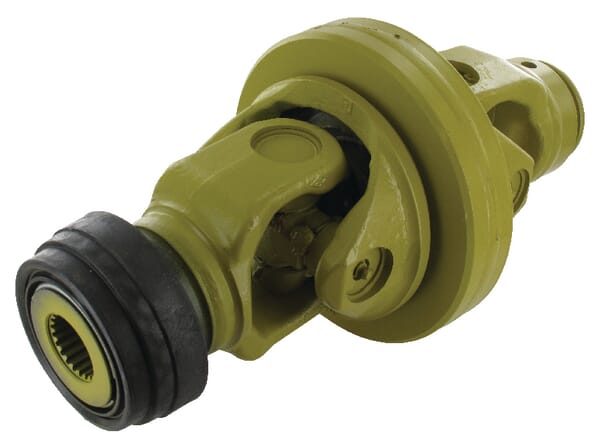

Walterscheid Wide-angle joint P580 1-3/8Z21 36833203613312
£1,243.45 excl.
£1,492.14 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000084638

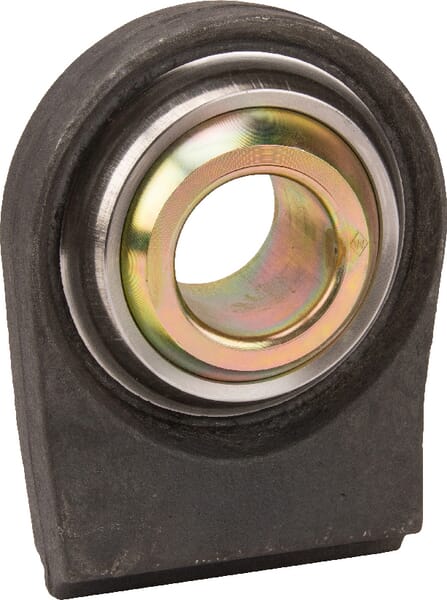

Walterscheid Ball end category 4 Hole diameter 45mm ball width 57mm 309303
