£1,039.72
excl. VAT
£1,247.66 incl. VAT
£1,247.66
incl. VAT
£1,039.72 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Big balers, Round balers, Mowers |
|---|---|
| Benefits | Torque retention, Smooth transition, Easier coupling when PTO shaft is braked, Wide range of applications |
| Clutch type code | FK96R |
| Connection locking type | Collar lock |
| Cross cap diameter | 27 mm |
| Cross length | 84 mm |

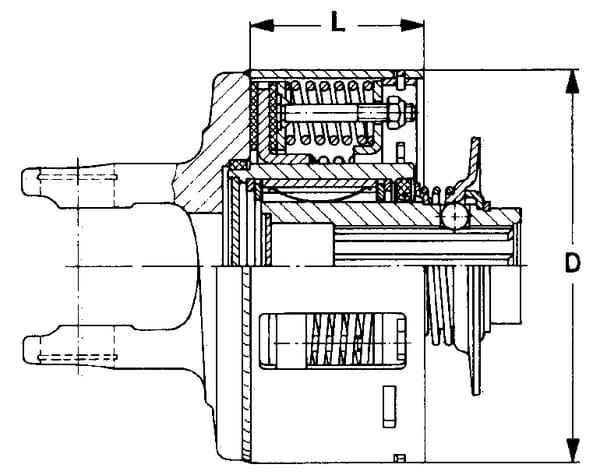

| Details | Combination of freewheel and friction disc clutch, Absorbs peak loads for short periods, Protection for subsequent mass, Max. torque adjustable via circlip |
| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 75 mm |
| Long description | Friction and overrunning clutches with spring pack FK96 cpl. 2300, 2400 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1050 N·m |
| Original number equivalent | 1172703 |
| Properties | Depending on the direction of rotation, Power transmission via friction discs, No noise during friction, Noise when freewheeling, Suitable as a starting clutch |
| Shaft size code | W2300 |
| Suitable for machine/vehicle brand | Matsui |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | 8432970155855 |
|---|---|
| Unit of measure | EA |
| Weight | 12500 g |
| Dimensions | 265 × 220 × 215 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000098486
Walterscheid Yoke, quick disconnect, 1-3/4"-6 spline, W2480 358410M
£533.31 excl.
£639.97 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000022496

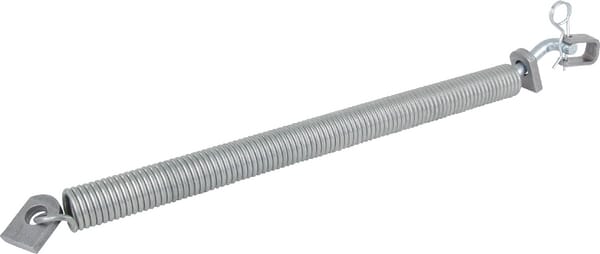

Walterscheid Spring Spacer 090243
£124.49 excl.
£149.39 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000067308
Walterscheid Yoke, Flange, W2300/P300/W300E 211600
£135.51 excl.
£162.61 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000400724
Walterscheid PTO shaft without yokes W2100 L: 860mm, W2100860OG
£286.90 excl.
£344.28 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000067383

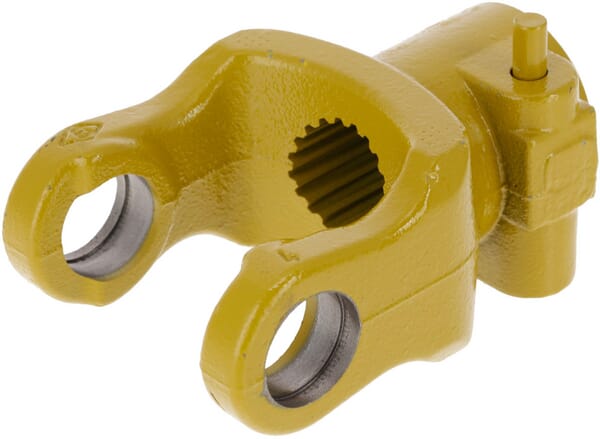

Walterscheid Yoke, quick disconnect, 1-3/8"-21 spline, W2300/P300/W300E 211900
£118.97 excl.
£142.76 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000084090

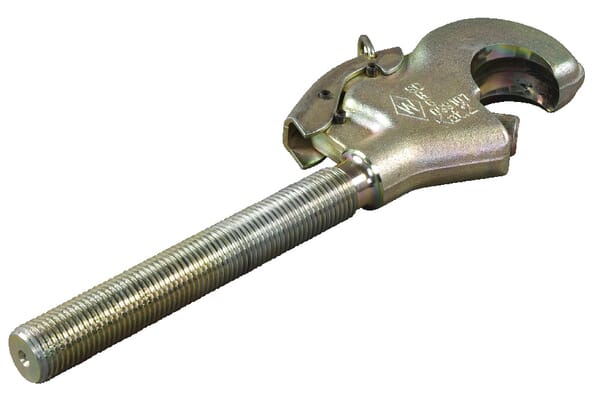

Walterscheid Toplink hook cat.2 305525
