£286.90
excl. VAT
£344.28 incl. VAT
£344.28
incl. VAT
£286.90 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September
Product details
| Application range | Mowers, Harvesters, Seeders |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual, Delivery without yokes |
| Cross joint bush diameter by machine side | 22 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 55 mm |
| Cross joint length by tractor side | 55 mm |
| Inner tube profile | OOcH |
| Length | 860 mm |
| Locking type by machine side | Cross |
| Locking type by tractor side | Cross |
| Long description | Series W2300 without yokes |
| Max static torque | 600 N·m |
| Original number equivalent | 1113119 |
| Outer tube profile | Oa |
| Power 1000 rpm | 18 kW |
| Power 540 rpm | 12 kW |
| Profile tube shape | Lemon |
| Properties | Lubrication frequency from 50 to 100 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Protection type | SD05 |
| Size code | W2100 |

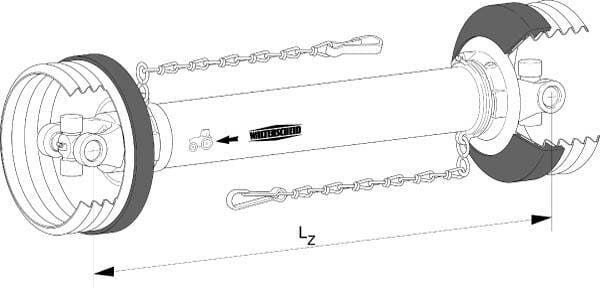

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5900 g |
| Dimensions | 900 × 140 × 140 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000096206
Walterscheid Yoke for clutch F5/2R, W2500/P500 363135
£415.63 excl.
£498.76 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000095367
Walterscheid Yoke, quick disconnect, 1-3/8"-21 spline, W2500/P500 3683102
£197.98 excl.
£237.58 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000030129

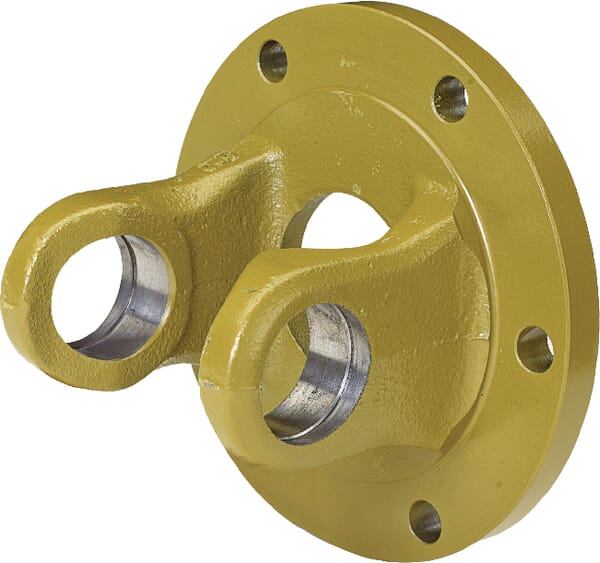

Walterscheid Yoke, flange, W2200/W200E 1109123
£261.64 excl.
£313.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000064107

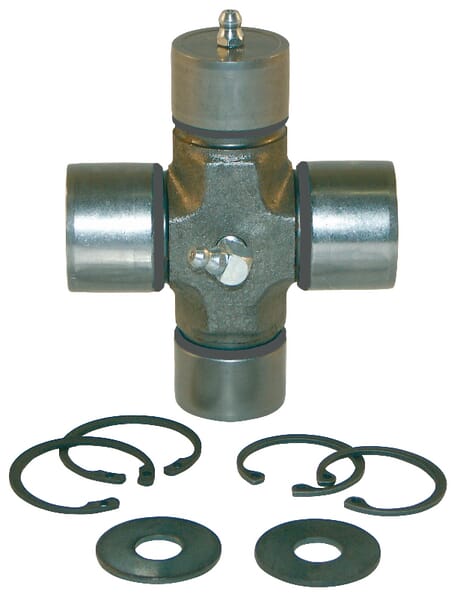

Walterscheid Cross journal diameter 24x61mm / diameter 22x76mm 2280 2006141
