£1,574.22
excl. VAT
£1,889.06 incl. VAT
£1,889.06
incl. VAT
£1,574.22 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

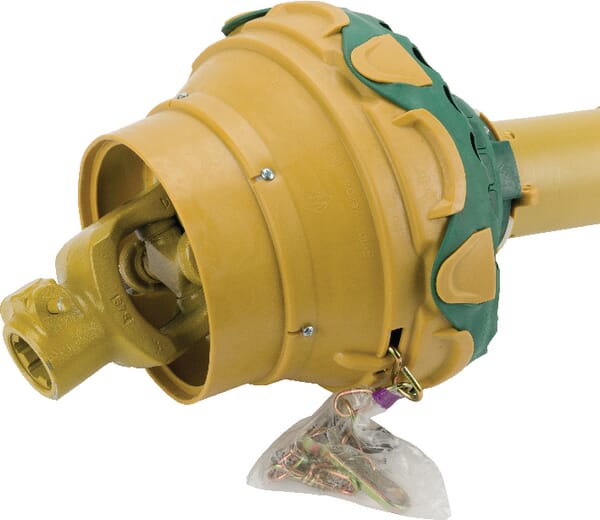

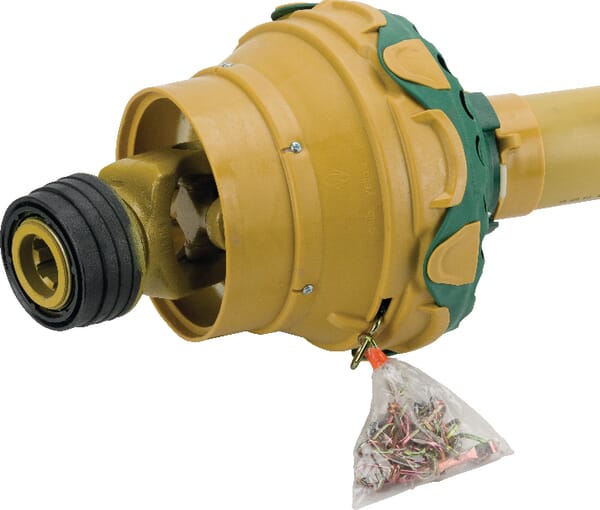

Product details
| Application range | Broad spreader, Slurry wagon, Big baler, Silage wagon |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Wide angle pto-shaft, 2 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by machine side - longer part | 32 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint bush diameter by tractor side - longer part | 32 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by machine side - longer part | 106 mm |
| Cross joint length by tractor side | 89 mm |
| Cross joint length by tractor side - longer part | 106 mm |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4GA |
| Length | 860 mm |
| Locking type by machine side | Automatic collar lock |
| Locking type by tractor side | Automatic collar lock |
| Long description | Wide-angle CV PTO drive shafts complete 80° series WWZ 2580 / 80° |
| Max static torque | 6000 N·m |
| Original number equivalent | 1800125 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 102 kW |
| Power 540 rpm | 66 kW |
| Profile tube shape | Star |
| Properties | Tractor side 1-3/8" (6) shaft collar kit, Device side 1-3/8" (6) clamp cone, Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | ST25 |
| Size code | WWZ 2580 |

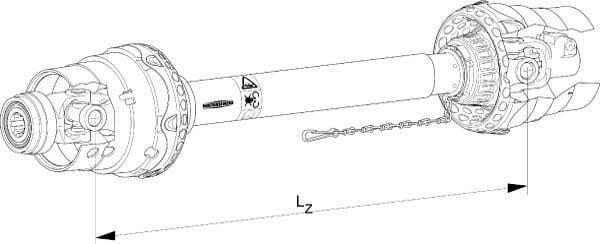

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 10° and service life 1000 hours, LZ = slid in length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | 8432970274082 |
|---|---|
| Unit of measure | EA |
| Weight | 38200 g |
| Dimensions | 1090 × 265 × 185 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000178349
Walterscheid Carry plate 80 mm 8005086
£2,157.47 excl.
£2,588.96 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000178341

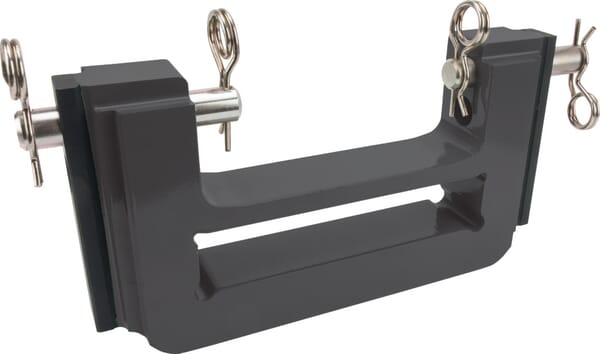

Walterscheid Counterweight pendant support 389mm 8005035
