£1,558.65
excl. VAT
£1,870.38 incl. VAT
£1,870.38
incl. VAT
£1,558.65 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Big balers, Round balers, Mowers |
|---|---|
| Benefits | Torque retention, Smooth transition, Easier coupling when PTO shaft is braked, Wide range of applications |
| Clutch type code | FK96/4R |
| Connection locking type | Central screw |
| Cross cap diameter | 32 mm |
| Cross length | 86 mm |
| Details | Combination of freewheel and friction disc clutch, Absorbs peak loads for short periods, Protection for subsequent mass, Max. torque adjustable via circlip |

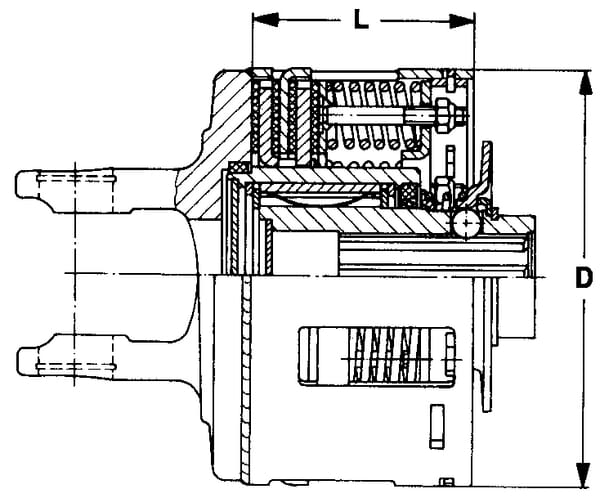

| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/4-6 |

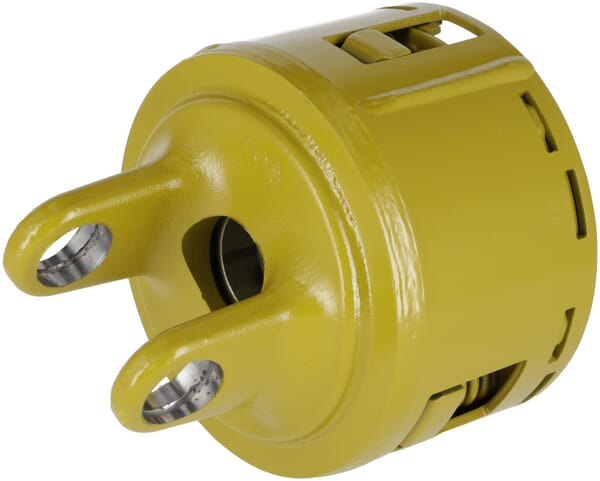

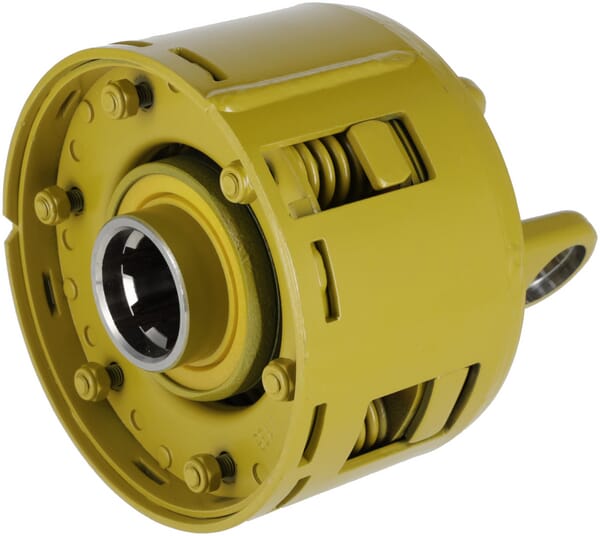

| Long description | Friction and overrunning clutches with spring pack FK96 / 4 cpl. 2400, 2500 |
| Max static torque | 1550 N·m |
| Original number equivalent | 1159378 |
| Properties | Depending on the direction of rotation, Power transmission via friction discs, No noise during friction, Noise when freewheeling, Suitable as a starting clutch |
| Shaft size code | W2400 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11410 g |
| Dimensions | 188 × 177 × 177 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000067483
Walterscheid Yoke, Double, W2300/P300/W300E 212600
£101.81 excl.
£122.17 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000152955

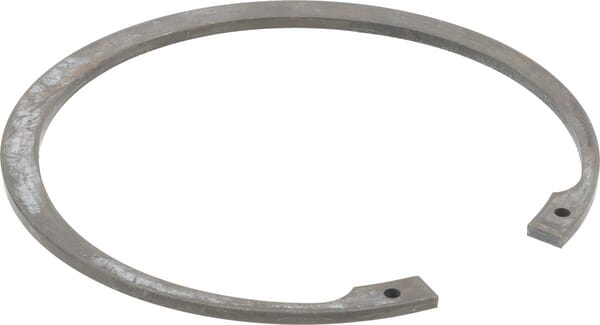

Walterscheid Circlip internal 150 DIN472 624600
£8.08 excl.
£9.70 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000033521
Walterscheid PTO inner half guard, L: 1000mm 1166092
£94.38 excl.
£113.26 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400794

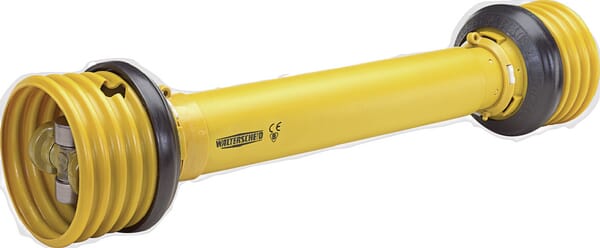

Walterscheid PTO shaft without yokes W2200 L: 1210mm, W220012100OG
£333.84 excl.
£400.61 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400849
Walterscheid PTO shaft W2500 L: 1210mm, W25001210361902
£776.09 excl.
£931.31 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000143104

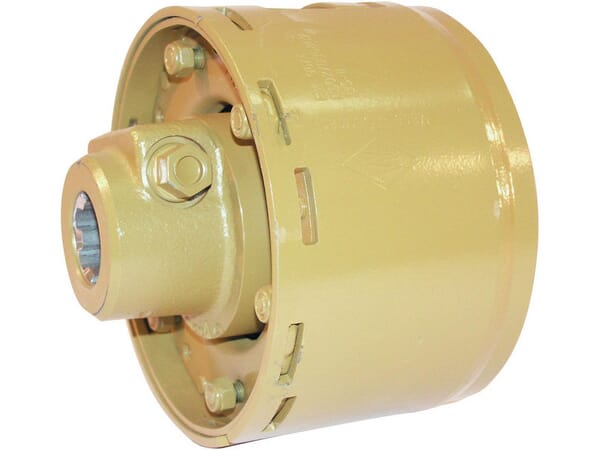

Walterscheid Friction clutch EK96/4 135daNm 5614251135
