£776.09
excl. VAT
£931.31 incl. VAT
£931.31
incl. VAT
£776.09 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Harvesters, Soil cultivating machinery, Wood shredders |
|---|---|
| Attachment machine side | Flange yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4 |
| Length | 1210 mm |
| Locking type by machine side | Flange |
| Locking type by tractor side | Collar lock |
| Max static torque | 6000 N·m |
| Original number equivalent | 1135666 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 102 kW |
| Power 540 rpm | 66 kW |
| Profile tube shape | Star |
| Properties | Tractor-side 1–3/8" (6) shaft collar kit, Machine side: flange Ø 160, Lubrication interval from 50 to 100 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Protection type | SD25 |
| Size code | W2500 |
| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 26110 g |
| Dimensions | 1470 × 250 × 250 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000092763
Walterscheid Yoke, Flange, W2400/P400/W400E 352000
£355.13 excl.
£426.16 incl.
In stock
Expected to ship on Friday 18 September
BPA000053383
Walterscheid Bush 35x39x35 1650618
£30.91 excl.
£37.09 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000098922
Walterscheid Yoke, Profile tube, 61x47mm, W2580 3614116M
£348.68 excl.
£418.42 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000143010

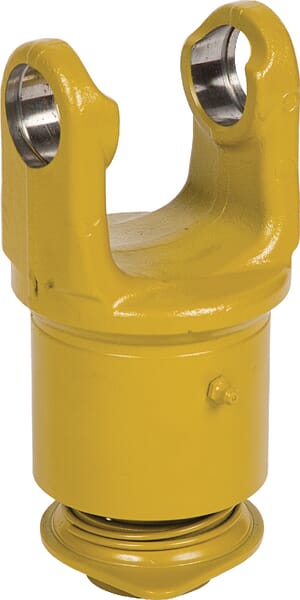

Walterscheid Overrun.clut. W2500 F5/2-21spl 5611541
