£1,008.27
excl. VAT
£1,209.92 incl. VAT
£1,209.92
incl. VAT
£1,008.27 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Big balers, Round balers, Mowers |
|---|---|
| Benefits | Torque retention, Smooth transition, Easier coupling when PTO shaft is braked, Wide range of applications |
| Clutch type code | FK96R |
| Connection locking type | Collar lock |
| Cross cap diameter | 32 mm |
| Cross length | 86 mm |

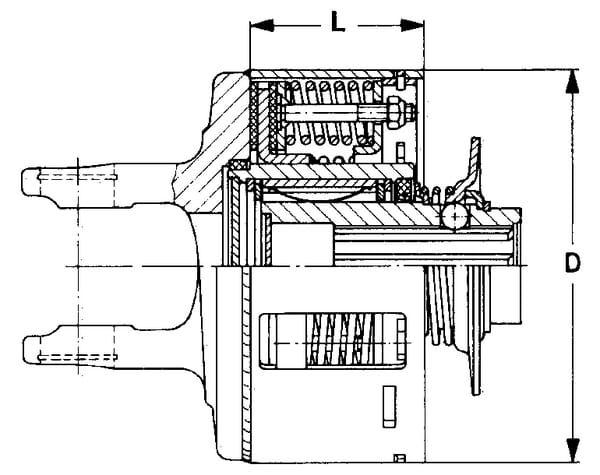

| Details | Combination of freewheel and friction disc clutch, Absorbs peak loads for short periods, Protection for subsequent mass, Max. torque adjustable via circlip |
| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 75 mm |
| Long description | Friction and overrunning clutches with spring pack FK96 cpl. 2300, 2400 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1050 N·m |
| Original number equivalent | 1178301 |
| Properties | Depending on the direction of rotation, Power transmission via friction discs, No noise during friction, Noise when freewheeling, Suitable as a starting clutch |
| Shaft size code | W2400 |
| Suitable for machine/vehicle brand | Giraud, Claas, Fella |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | 8432970157873 |
|---|---|
| Unit of measure | EA |
| Weight | 10405 g |
| Dimensions | 270 × 220 × 220 mm |
| Dangerous goods | No |
You might also like
BPA000151104
Walterscheid Grease nipple M6 - 45° 632202
£2.04 excl.
£2.45 incl.
In stock
Expected to ship on Friday 18 September
BPA000065696
Walterscheid Yoke, Profile tube, 30mm, W2200/W200E 203300
£75.04 excl.
£90.05 incl.
In stock
Expected to ship on Friday 18 September
BPA000189185

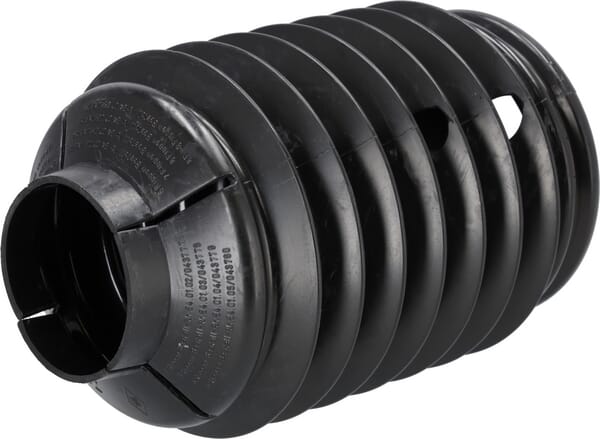

Walterscheid Guard cone SD05 L=282 black 8506500B
£36.70 excl.
£44.04 incl.
In stock
Expected to ship on Friday 18 September
BPA000184592
Walterscheid Guard cone SC22 RP 6 841006
£14.89 excl.
£17.87 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000267179

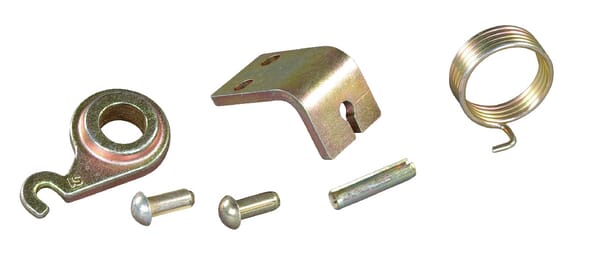

Walterscheid Coupling operation Cramer FB2000
£156.08 excl.
£187.30 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000157445

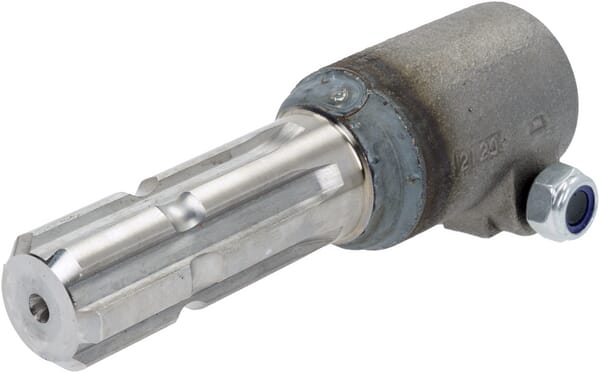

Walterscheid PTO Reducer Male 1 3/8" (6) Female 1 3/8" (21) with clamp bolt 6710162
