£2,178.19
excl. VAT
£2,613.83 incl. VAT
£2,613.83
incl. VAT
£2,178.19 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | For tractors over 294 kW |
|---|---|
| Benefits | Maximum tensile and compressive force for optimum performance, Versatile in use by mounting various fork heads, Valve block protected by special reinforced bars |

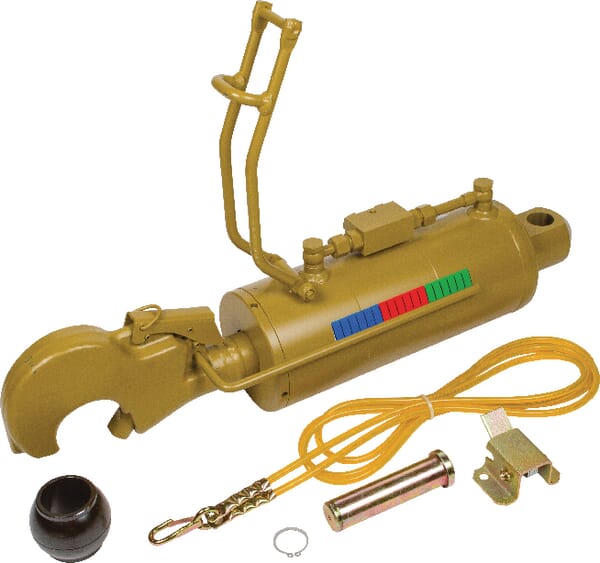

| Consists of | Supplied with handle and tractor-side holder, Note: fork head must be ordered separately. |

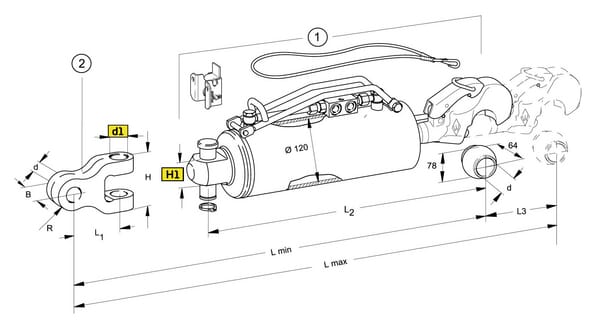

| Cylinder bore diameter | 120 mm |
| Details | The stated length refers to the length without fork head, measured from the centre distance |
| L3Stroke | 183 mm |
| L maxMax. length | 777 mm |
| L minMin. length | 594 mm |
| Max.tractor power | 294 kW |
| Mounting hole diameter - rod connection | 45.2 mm |
| Mounting type - cylinder side connection | No mounting |
| Mounting type - rod side connection | Hook |
| Outside diameter | 135 mm |
| Top link category - cylinder connection | 4 |
| Top link category - rod connection | 4 |
| Unit | Each |
Logistics
| EAN | 8432970418554 |
|---|---|
| Unit of measure | EA |
| Weight | 42000 g |
| Dimensions | 800 × 240 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000068163

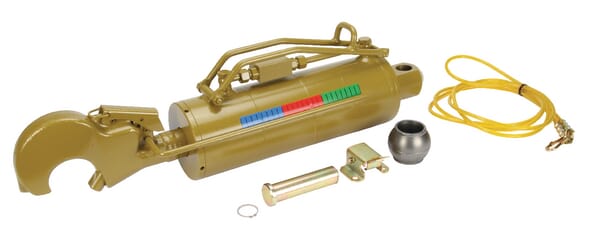

Walterscheid Hydraulic toplink, hook with ball cat.4HD, diameter 120 mm 205132
£2,242.12 excl.
£2,690.54 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000092577

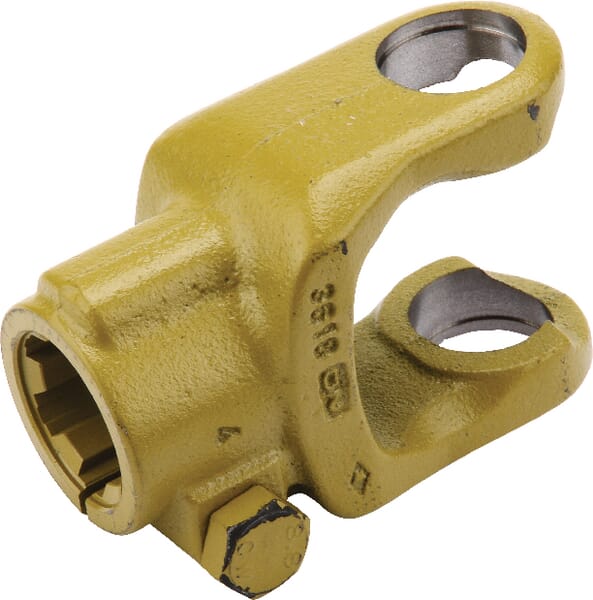

Walterscheid Yoke, Clamp bolt, 30mm, W2400/P400/W400E 351008
£173.90 excl.
£208.68 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000244782

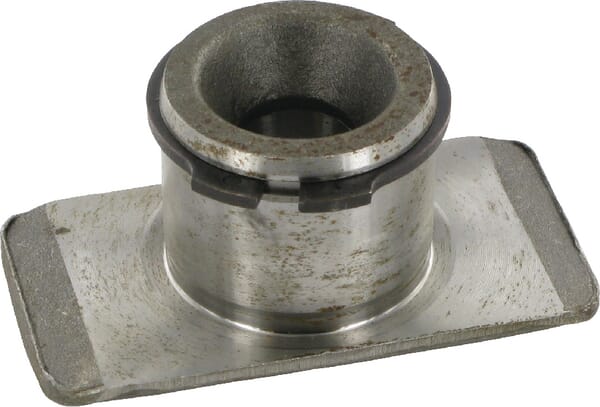

Walterscheid Bush 38mm Cramer CK420007002
£125.40 excl.
£150.48 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000035025

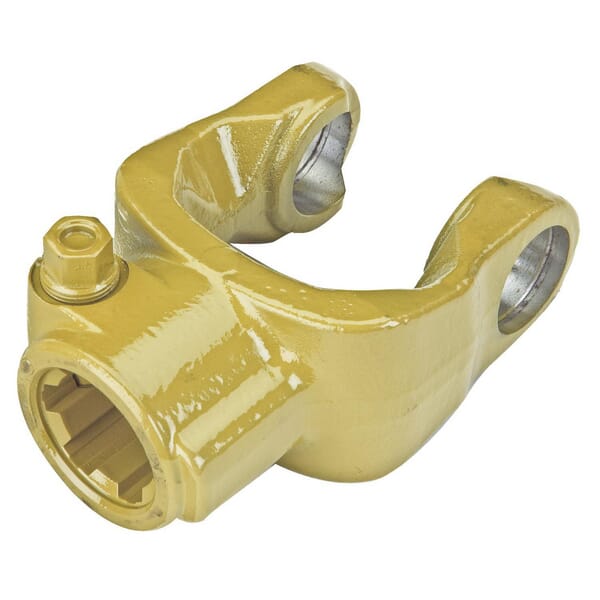

Walterscheid Yoke, Quick disconnect, 1-3/4"-20 spline, W2500/P500 1147464
£243.73 excl.
£292.48 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000172668

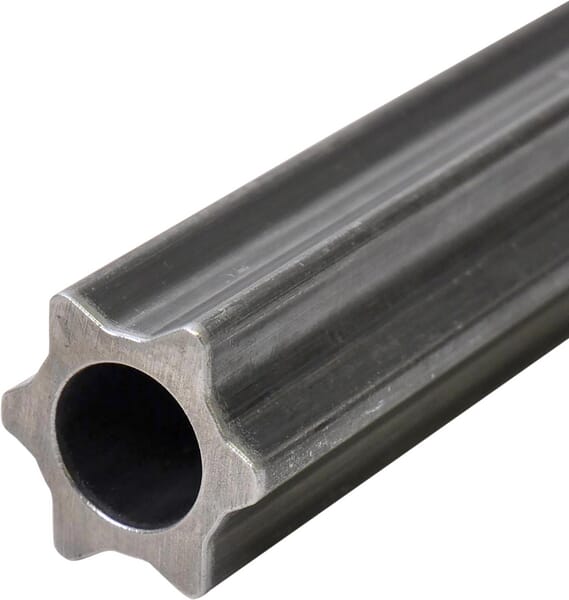

Walterscheid Profile tube star S4 diameter out: 51x37mm L: 0.8m 754900800
£187.64 excl.
£225.17 incl.
In stock
Expected to ship on Monday 21 September
BPA000226149

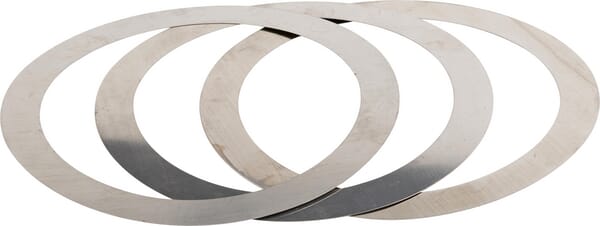

Walterscheid Shim set M12x150mm DIN 9021 AG152
