£2,242.12
excl. VAT
£2,690.54 incl. VAT
£2,690.54
incl. VAT
£2,242.12 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | For tractors over 294 kW |
|---|---|
| Benefits | Maximum tensile and compressive force for optimum performance, Versatile in use by mounting various fork heads, Valve block protected by special reinforced bars |
| Consists of | Supplied with handle and tractor-side holder, Note: fork head must be ordered separately. |

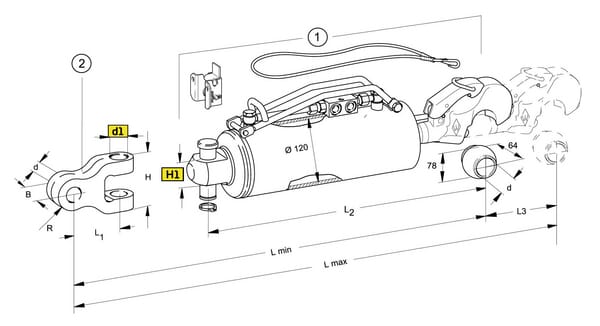

| Cylinder bore diameter | 120 mm |
| Details | The stated length refers to the length without fork head, measured from the centre distance |
| L3Stroke | 248 mm |
| L maxMax. length | 907 mm |
| L minMin. length | 659 mm |
| Max.tractor power | 294 kW |
| Mounting hole diameter - rod connection | 45.2 mm |
| Mounting type - cylinder side connection | No mounting |
| Mounting type - rod side connection | Hook |
| Outside diameter | 135 mm |
| Top link category - cylinder connection | 4 |
| Top link category - rod connection | 4 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
204783
Walterscheid Toplink ball Cat.4/4 diameter 45.2/78x64mm 204783
£111.03 excl.
£133.24 incl.

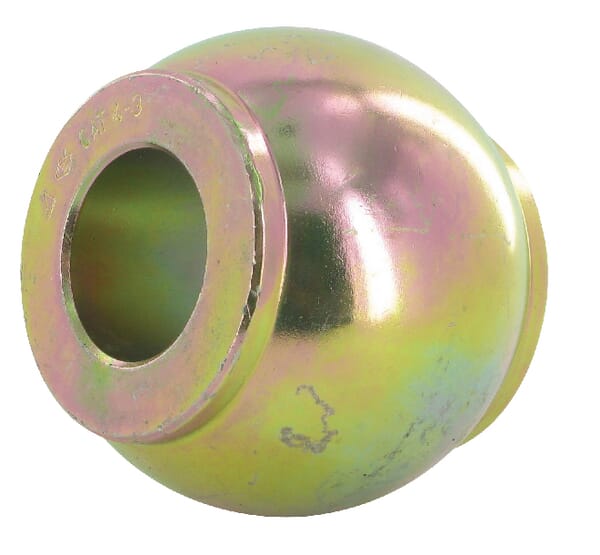

205125
Walterscheid Toplink ball Cat.4/3 diameter 32/78x64mm 205125
£61.58 excl.
£73.90 incl.

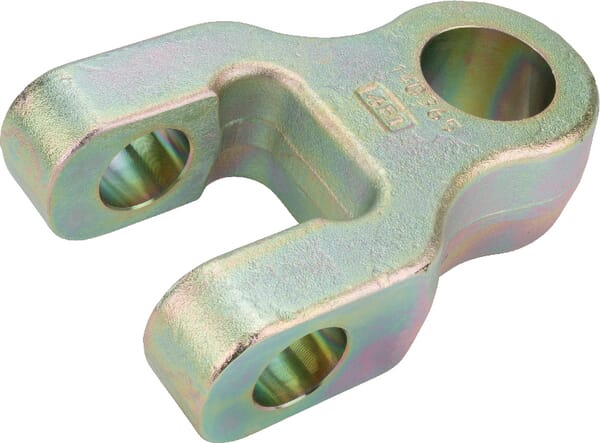

204337
Walterscheid Fork Head 45,2x110,0mm 204337
£175.79 excl.
£210.95 incl.
203616

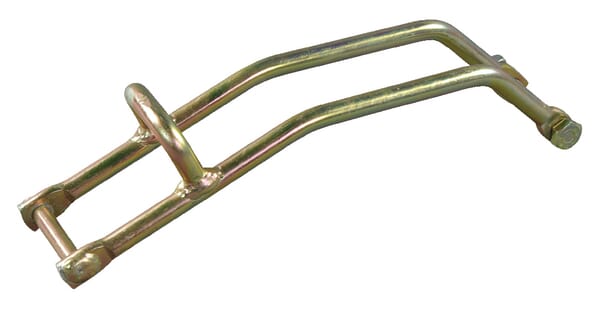

Walterscheid Toplink retainer 285mm 203616
£119.80 excl.
£143.76 incl.

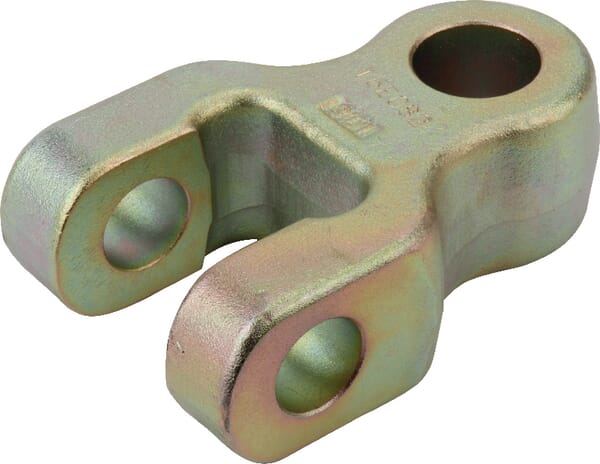

1205633
Walterscheid Fork Head 40,5x110,0mm 1205633
£238.99 excl.
£286.79 incl.

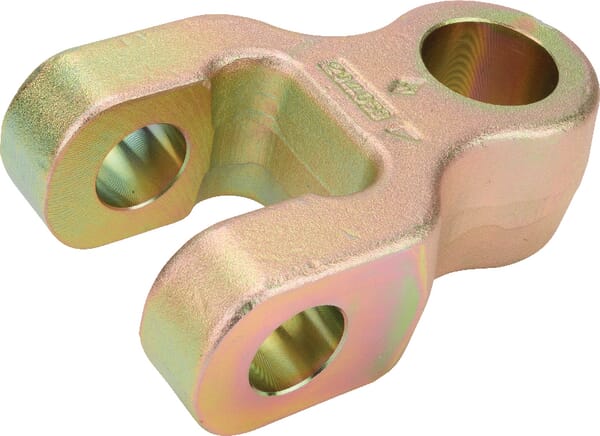

204060
Walterscheid Fork Head 45,2x110,0mm 204060
£183.65 excl.
£220.38 incl.
202023
Walterscheid Fork Head 37,3x110,0mm 202023
£180.93 excl.
£217.12 incl.

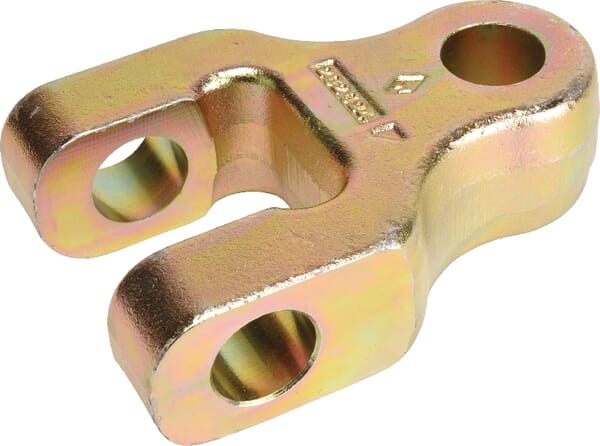

202031
Walterscheid Fork Head 32,3x110,0mm 202031
£157.00 excl.
£188.40 incl.
Logistics
| EAN | 8432970418561 |
|---|---|
| Unit of measure | EA |
| Weight | 45000 g |
| Dimensions | 800 × 240 × 170 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000068162
Walterscheid Hydraulic toplink, hook with ball cat.4HD, diameter 120 mm 205131
£2,178.19 excl.
£2,613.83 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000075999
Walterscheid Yoke, Clamp bolt, 1-3/4"-6 spline, W2600/P600 2618100
£396.46 excl.
£475.75 incl.
In stock
Expected to ship on Monday 21 September
BPA000173698
Walterscheid Profile tube coated lemon OOcGA diameter out: 31x23.5mm L: 1m 7502911000
£70.75 excl.
£84.90 incl.
In stock
Expected to ship on Monday 21 September
BPA000038062
Walterscheid Releasing lever 1205576
£40.96 excl.
£49.15 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000146516

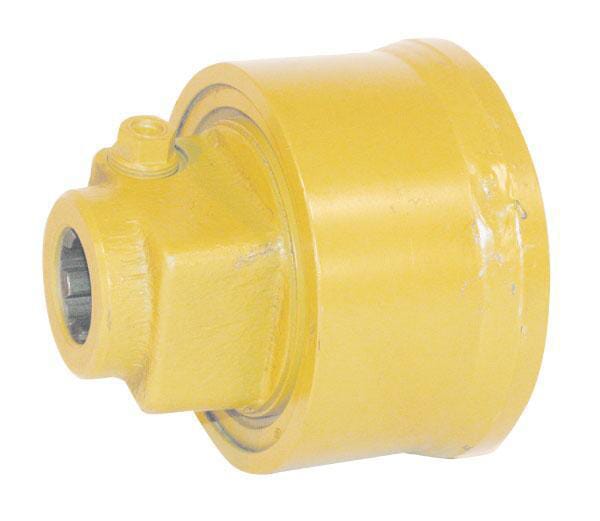

Walterscheid Cam clutch EK64/14R 5910342165
£1,473.81 excl.
£1,768.57 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000366260

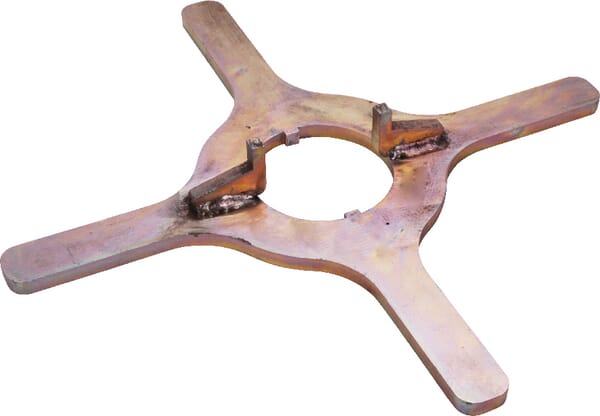

Walterscheid Special tool for K62 SW29
