£298.08
excl. VAT
£357.70 incl. VAT
£357.70
incl. VAT
£298.08 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mowers, Harvesters, Seeders |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Semi clutch axle with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by tractor side | 75 mm |
| Inner tube large outside diameter | 40 mm |
| Inner tube profile | Ov |
| Inner tube wall thickness | 4 mm |
| Length | 1130 mm |
| Locking type by machine side | n/a |
| Locking type by tractor side | Automatic collar lock |
| Long description | PTO drive shafts complete standard series W 2300 (inner) |
| Max static torque | 2500 N·m |
| Original number equivalent | 1113181 |
| Power 1000 rpm | 44 kW |
| Power 540 rpm | 28 kW |
| Profile tube shape | Lemon |
| Properties | Tractor-side 1–3/8" (6) shaft collar kit, Lubrication interval from 50 to 100 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Protection type | SD15 |
| Size code | WH 2300 |
| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7190 g |
| Dimensions | 1140 × 180 × 180 mm |
| Dangerous goods | No |
You might also like
Free shipping

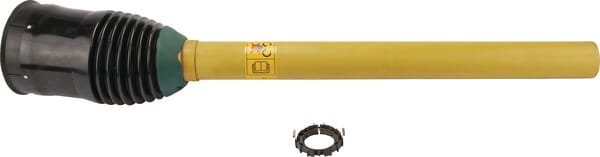

BPA000343907
Walterscheid PTO inner half guard diameter 232, L: 1,000mm PG301000I8638603
£371.46 excl.
£445.75 incl.
In stock
Expected to ship on Monday 21 September

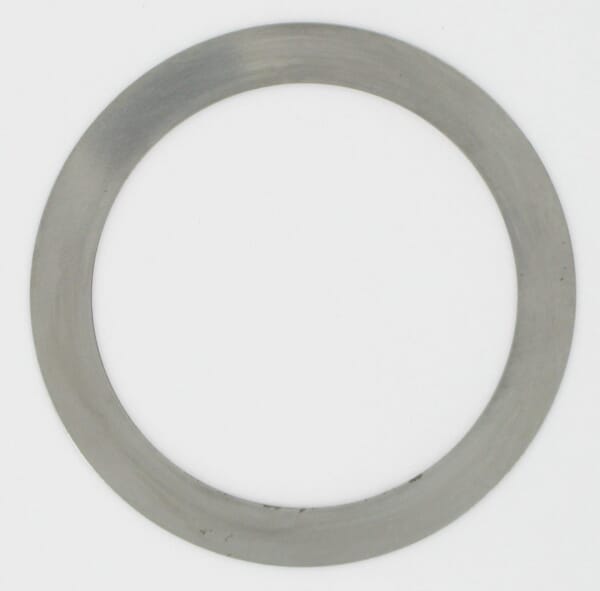

BPA000051571
Walterscheid Washer F5 162050
£4.43 excl.
£5.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

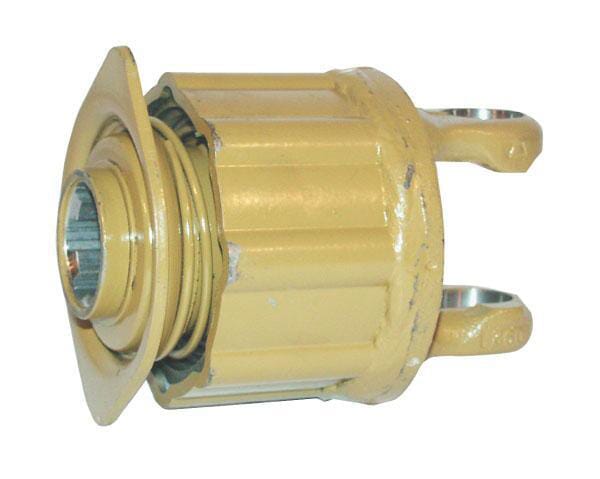

BPA000140466
Walterscheid Radial pin clutch K35B 5564803120
£573.56 excl.
£688.27 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000077887
Walterscheid Yoke, Profile tube, 71.5x57.5mm, P600 261430
£272.52 excl.
£327.02 incl.
In stock
Expected to ship on Monday 21 September
Free shipping

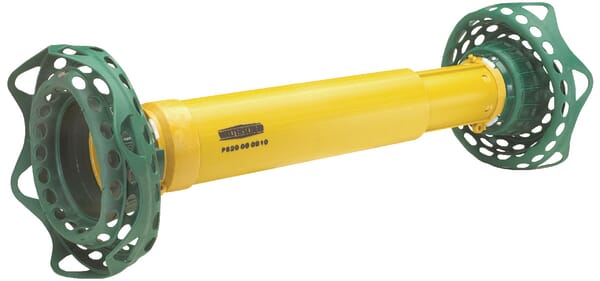

BPA000343891
Walterscheid Guard complete P series wide-angle PG201000WWZFLEX
£336.68 excl.
£404.02 incl.
In stock
Expected to ship on Monday 21 September
Free shipping

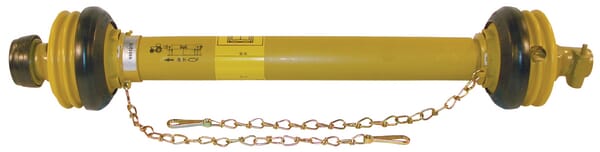

BPA000400872
