£386.67
excl. VAT
£464.00 incl. VAT
£464.00
incl. VAT
£386.67 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mowers, Harvesters, Soil cultivating machinery |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Semi clutch axle with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 36 mm |
| Cross joint length by tractor side | 76 mm |
| Includes | Half PTO shaft with guard, Declaration of conformity, User instructions, Provided with "CE" marking |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4LH |
| Inner tube wall thickness | 6 mm |

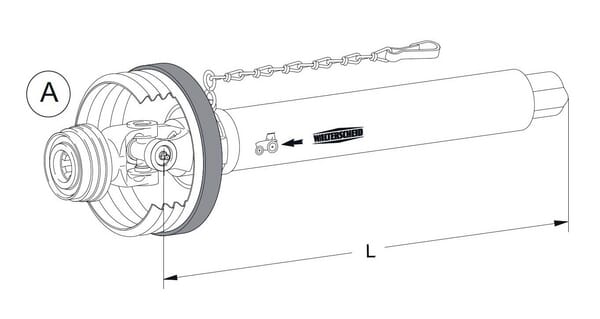

| Length | 1130 mm |
| Locking type by machine side | n/a |
| Locking type by tractor side | Automatic collar lock |
| Long description | PTO shafts standard series W2400 (inner) suitable for mowers, harvesters and soil cultivating machines |
| Max static torque | 4000 N·m |
| Original number equivalent | 1113184 |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 39 kW |
| Product details | Half PTO shaft with guard, Tractor side 1-3/8" (6) collar fastening, Lubricating interval of 50 to 100 hours, Meets the requirements according to EC 89/392 EEC, Meets safety standard EN12965, Observe Walterscheid instruction manual, Max. dyn. power 540 rpm: 39kW - 695Nm, Max. dyn. power 1000 rpm: 61kW - 580Nm, Values at bending angle 5° and service life 1000 hours, LZ= Retracted length in mm, from cross to cross |
| Profile tube shape | Star |
| Properties | Tractor-side 1–3/8" (6) shaft collar kit, Lubrication interval from 50 to 100 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Protection type | SD25 |
| Size code | WH 2400 |
| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11170 g |
| Dimensions | 1180 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
BPA000033391
Walterscheid Guard cone 1165173
£30.63 excl.
£36.76 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400157
Walterscheid Wide angle PTO shaft WWZ 2580 L: 860mm, WWZ2580860
£1,574.22 excl.
£1,889.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000226137
Walterscheid Agraset plastic slide collar (automatic) AG124
£72.40 excl.
£86.88 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000095370

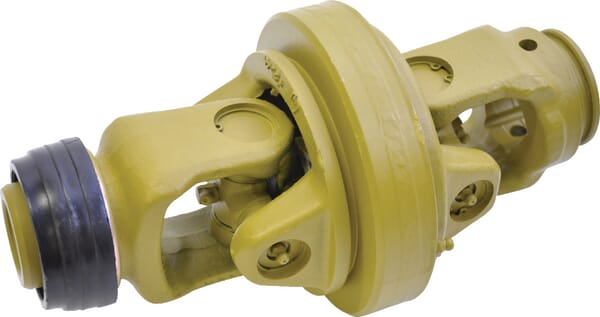

Walterscheid Wide-angle cv joint W2580-S4 36831303613104
£1,170.73 excl.
£1,404.88 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000143253

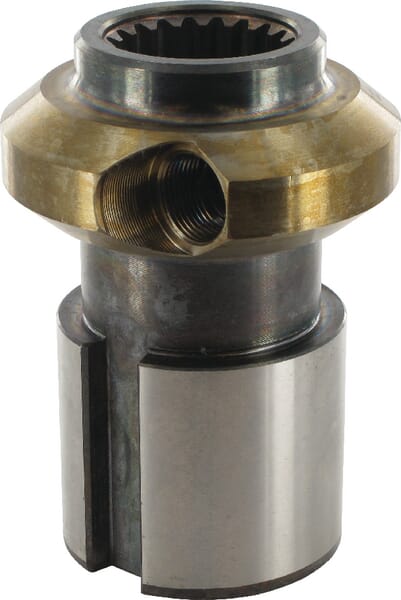

Walterscheid Hub F5/2 1.3/4-20spl. 561960
£524.77 excl.
£629.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000357067

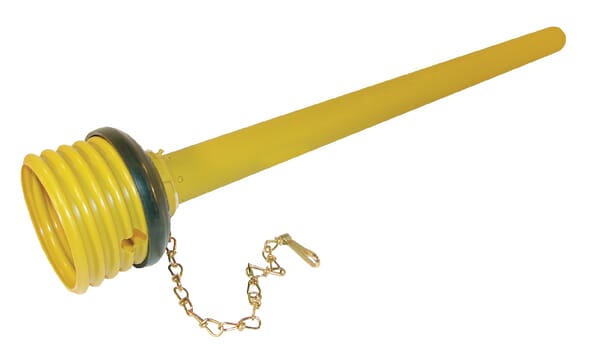

Walterscheid PTO inner half guard diameter 185, L: 550mm SD35550I
