£395.46
excl. VAT
£474.55 incl. VAT
£474.55
incl. VAT
£395.46 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mowers, Harvesters, Soil cultivating machinery |
|---|---|
| Attachment tractor side | n/a |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual, Delivered without yokes |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Details | Dispense duration: 100–250 hours, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube profile | S4LH |
| Length | 1060 mm |
| Locking type by tractor side | Cross |
| Long description | PTO drive shafts complete Power Drive series P 400 |
| Original number equivalent | 1113267 |
| Properties | Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG20 |
| Size code | P400 |

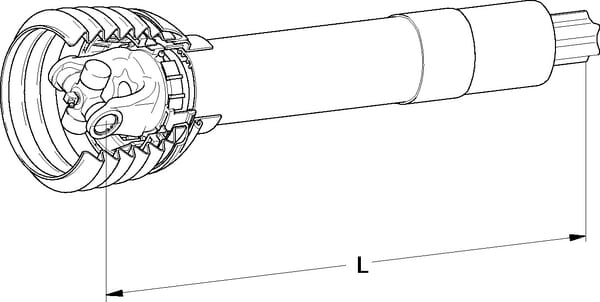

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 5° and service life 1000 hours, LZ = closed length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10500 g |
| Dimensions | 1190 × 190 × 190 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000178304
Walterscheid Weld on Mounting plate 145x145 / 160mm 8x M20 8004473
£118.12 excl.
£141.74 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000052668

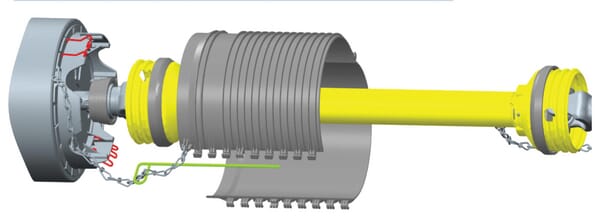

Walterscheid Implement guard cone 1607331
£96.44 excl.
£115.73 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000142962

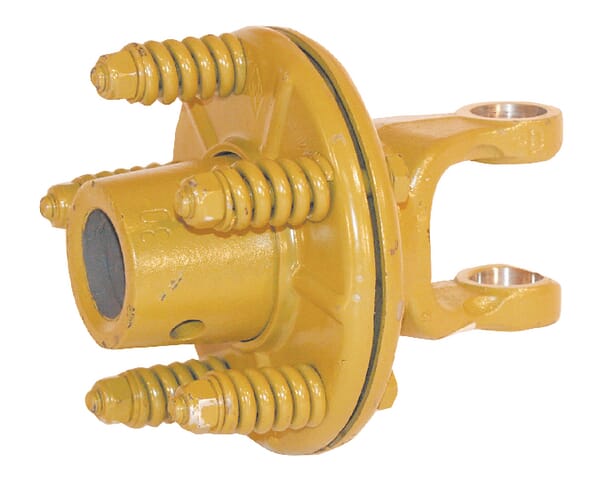

Walterscheid K94/1 Friction clutch 561001940
£300.52 excl.
£360.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000024035

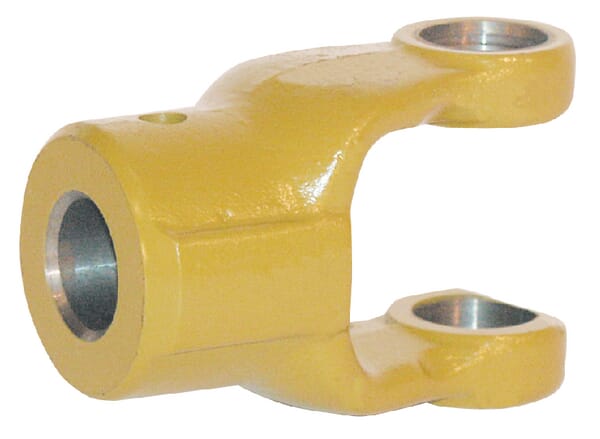

Walterscheid Yoke, Hub, 20mm, W2100/W100E 102201
£126.03 excl.
£151.24 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000095410

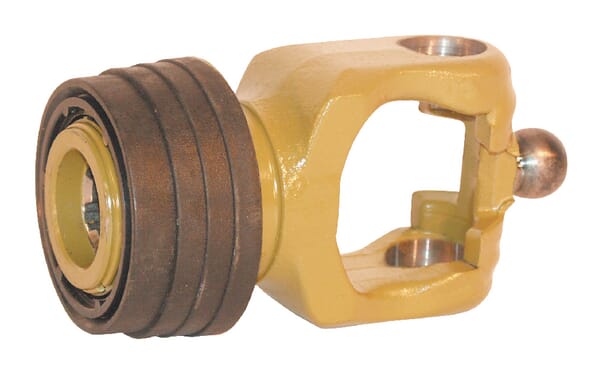

Walterscheid Yoke, quick disconnect, 1-3/4"-6 spline, W2580 368410M
