£2,121.38
excl. VAT
£2,545.66 incl. VAT
£2,545.66
incl. VAT
£2,121.38 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Heavy-duty soil cultivating machinery, Wood shredders, Stump grinders |
|---|---|
| Attachment machine side | Shear bolt clutch |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Connection outside diameter machine side inch and splines | 1.3/4-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 42 mm |
| Cross joint bush diameter by tractor side | 42 mm |
| Cross joint length by machine side | 104 mm |
| Cross joint length by tractor side | 104 mm |
| Details | Dispense duration: 100–250 hours, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Extra info | Standard shear bolt protection value is max 4800 Nm with bolt quality 8.8 (DIN 931 - M12x70), and max 3600 Nm with bolt quality 6.8 |
| Inner tube profile | S5H |
| Length | 1210 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 4800 N·m |
| Max static torque | 7800 N·m |
| Original number equivalent | 1156550 |
| Outer tube profile | S6 |
| Properties | Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG30 |
| Size code | P600 |
| Technical info | See Walterscheid instruction manual, Values at working angle 5° and service life 1000 hours, LZ = closed length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 45000 g |
| Dimensions | 1520 × 250 × 250 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000029522
Walterscheid Shear bolt / overrun clutch FKB 61/20R 1115683
£799.57 excl.
£959.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000092819

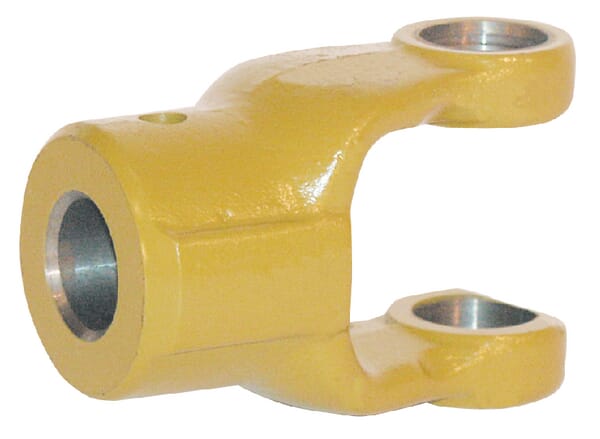

Walterscheid Yoke, Hub, 40mm, W2400/P400/W400E 352413
£272.05 excl.
£326.46 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000244822
Walterscheid Spring Cramer CK488611020
£12.63 excl.
£15.16 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000098798

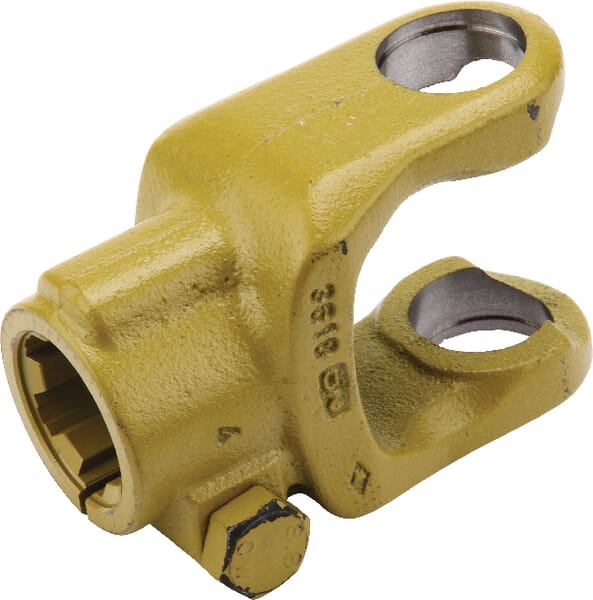

Walterscheid Yoke, Clamp bolt, 1-3/8"-21 spline, W2500/P500 361006
£197.26 excl.
£236.71 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000045075

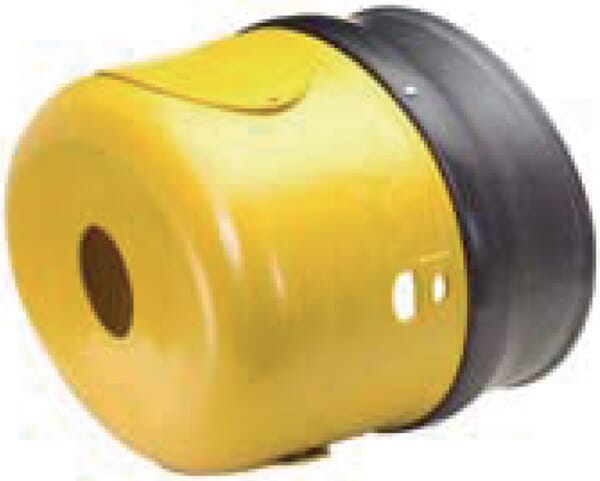

Walterscheid Protective cup 1378018
