£1,108.16
excl. VAT
£1,329.79 incl. VAT
£1,329.79
incl. VAT
£1,108.16 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Loader wagons |
|---|---|
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual, Delivered without yokes, Delivered without cross journal on the wide angle side |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by machine side - longer part | 27 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint bush diameter by tractor side - longer part | 27 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by machine side - longer part | 94 mm |
| Cross joint length by tractor side | 76 mm |
| Cross joint length by tractor side - longer part | 94 mm |
| Details | Robust, radial spherical plain bearing integrated in centring system, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |

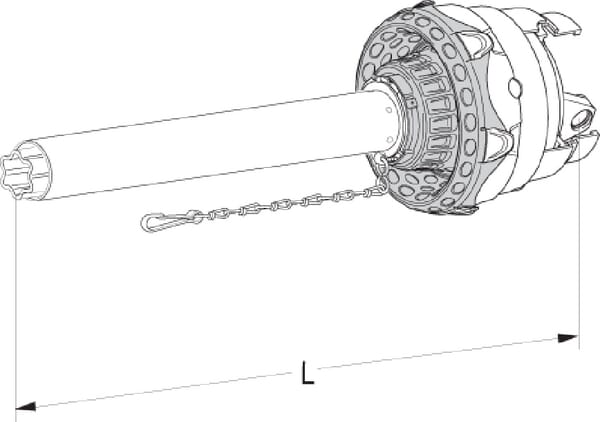

| Length | 1010 mm |
| Locking type by machine side | Wide angle without UJ |
| Original number equivalent | 1113278 |
| Outer tube profile | S5 |
| Properties | Lubrication interval: max. 60 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG20 |
| Size code | PWH 480 |
| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 10° and service life 1000 hours, LZ = closed length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 18100 g |
| Dimensions | 260 × 260 × 260 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000034061
Walterscheid Spring set 1135695
£142.47 excl.
£170.96 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000038088
Walterscheid Toplink 1206015
£2,194.48 excl.
£2,633.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000056477

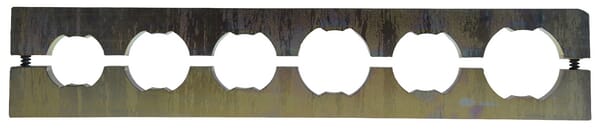

Walterscheid Clamping jaws, square/SFT S8–S0, SW40 1697039
£486.87 excl.
£584.25 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000366264

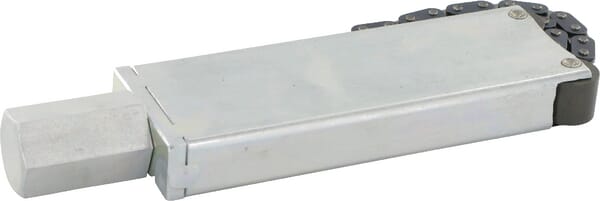

Walterscheid Special tool SW32
£158.21 excl.
£189.86 incl.
In stock
Expected to ship on Friday 25 September
Free shipping
BPA000142987

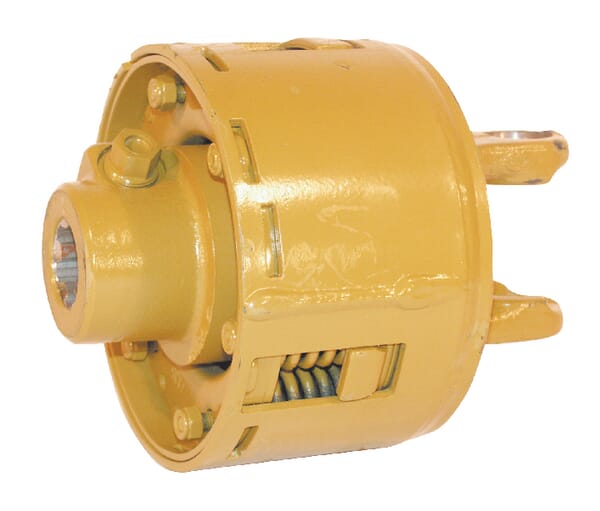

Walterscheid Friction clutch K96 561075090
