£963.04
excl. VAT
£1,155.65 incl. VAT
£1,155.65
incl. VAT
£963.04 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Loader wagons |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual, Delivered without yokes, Delivered without cross journal on the wide angle side |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by machine side - longer part | 27 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint bush diameter by tractor side - longer part | 27 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by machine side - longer part | 94 mm |
| Cross joint length by tractor side | 76 mm |
| Cross joint length by tractor side - longer part | 94 mm |
| Details | Robust, radial spherical plain bearing integrated in centring system, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube profile | S4LGA |
| Length | 1134 mm |
| Original number equivalent | 1113275 |
| Properties | Lubrication interval: max. 60 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG20 |
| Size code | PWH 480 |
| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 10° and service life 1000 hours, LZ = closed length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 19100 g |
| Dimensions | 1800 × 260 × 220 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000140220

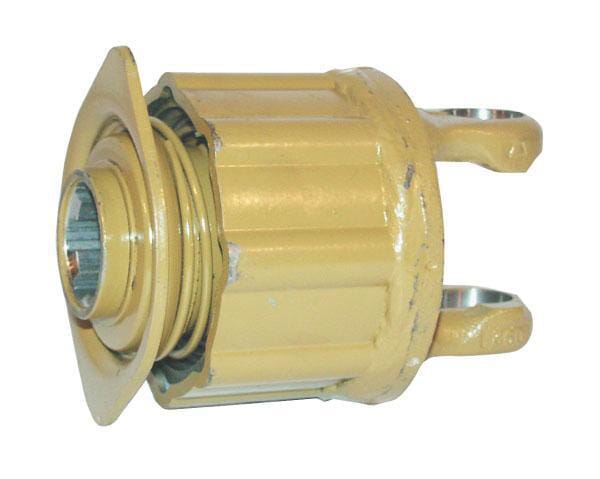

Walterscheid Radial pin clutch W2200-K31B. 551940330
£280.23 excl.
£336.28 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400802

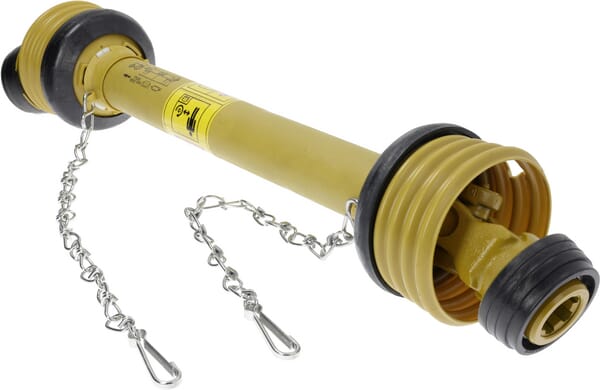

Walterscheid PTO shaft W2300 L: 1010mm, W23001010
£428.42 excl.
£514.10 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000068407

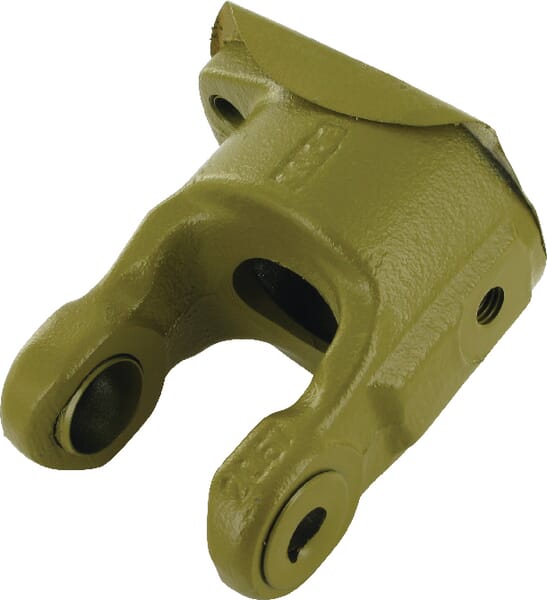

Walterscheid Yoke for clutch K61/1, W2200/W200E 206702
£174.11 excl.
£208.93 incl.
In stock
Expected to ship on Monday 21 September
BPA000038110

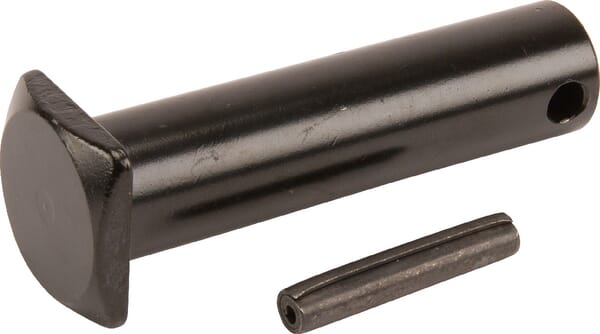

Walterscheid Pin 25x110mm 1206750
£27.60 excl.
£33.12 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000092762
Walterscheid Wide-angle joint PJ 480 35193103514310
£1,170.44 excl.
£1,404.53 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000363746

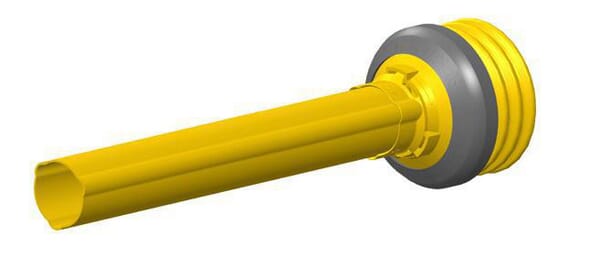

Walterscheid Guard half outer ST25 D160 ST251000AD160
