£280.23
excl. VAT
£336.28 incl. VAT
£336.28
incl. VAT
£280.23 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Tedders, Rakes, Pick-up, Maize headers, Silo spreaders |
|---|---|
| Benefits | Acoustic signal in the event of overload, Pulsing power transmission when slipping through |
| Clutch type code | K31B |
| Connection locking type | Collar lock |
| Cross cap diameter | 24 mm |
| Cross length | 70 mm |
| Details | Limits the torque in the event of overload, Clutch rattles when slipping through |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 36 mm |

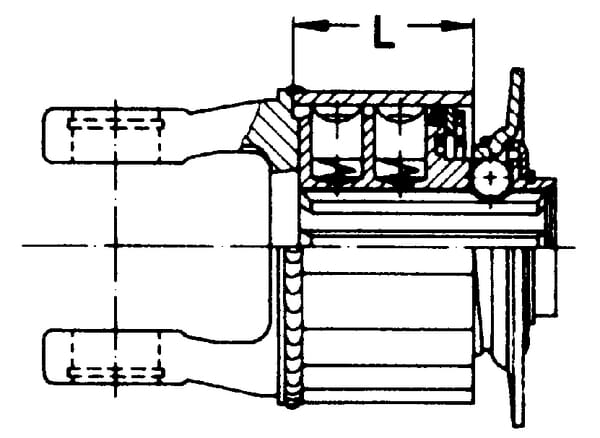

| Long description | Star ratchet / radial pin clutches K 31-B cpl. 2100, 2200, 2300 |
| Max. rotation speed | 700 r/min |
| Max static torque | 300 N·m |
| Original number equivalent | 1366240 |
| Outside diameter | 95 mm |
| Product details | Power transmission via cams and springs, Limits torque when overloaded, Clutch starts ratcheting when slipping |
| Properties | 2 directions of rotation, Impacts and vibrations |
| Pros | 2 rotation directions, Shocks and vibrations, Acoustic signal when overloaded, Pulsating power transmission when slipping |
| Shaft size code | W2200 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | Force transmission using cam and springs |
| Unit | Each |
Logistics
| EAN | 8432970176614 |
|---|---|
| Unit of measure | EA |
| Weight | 2225 g |
| Dimensions | 142 × 132 × 128 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000146896

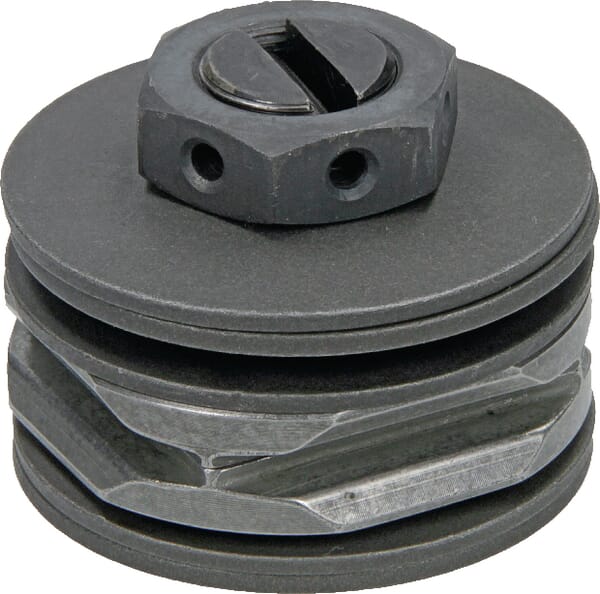

Walterscheid Spring set K64/24 290daNm 592700290
£141.64 excl.
£169.97 incl.
In stock
Expected to ship on Monday 21 September
BPA000022170

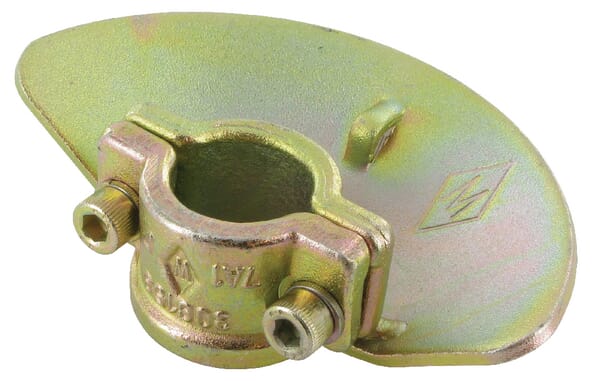

Walterscheid Clamp guide cone, cat. 2 089714
£42.84 excl.
£51.41 incl.
In stock
Expected to ship on Monday 21 September
BPA000084030
Walterscheid Adaptor bush 28.7-37.0mm 305281
£7.60 excl.
£9.12 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000067160
Walterscheid Yoke, quick disconnect, 1-3/8"-6 spline, W2380 2110810
£189.90 excl.
£227.88 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000067529

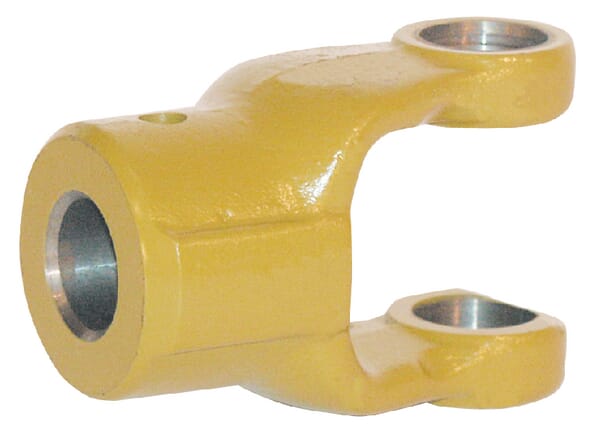

Walterscheid Yoke, Hub, 30mm, W2300/P300/W300E 213003
£182.54 excl.
£219.05 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400849

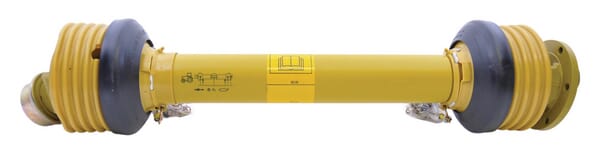

Walterscheid PTO shaft W2500 L: 1210mm, W25001210361902
