£960.97
excl. VAT
£1,153.17 incl. VAT
£1,153.17
incl. VAT
£960.97 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Harvesters, Soil cultivating machinery, Wood shredders |
|---|---|
| Attachment machine side | Shear bolt clutch |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Longer life time than standard PTO shaft, Low maintenance costs, Faster coupling |
| Clutch type code | KB61/20 |
| Connection outside diameter machine side inch and splines | 1.3/4-20 |
| Connection outside diameter tractor side inch and splines | 1.3/4-20 |
| Consists of | PTO shaft with guard tube, Declaration of conformity, Instruction manual, Yokes not supplied |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Details | Lubrication interval: 100 to 250 hours, Profiled guard tube prevents rotation, Sealed profile tube prevents penetration of dirt, Quickly removable shielding, No safety chain required on tractor side |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4 |
| Length | 1010 mm |
| Locking type by machine side | Clamp bolt (interfering) |
| Locking type by tractor side | Push pin |
| Max. clutch torque | 3330 N·m |
| Max static torque | 6000 N·m |
| Original number equivalent | 1601704 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 102 kW |
| Power 540 rpm | 66 kW |
| Profile tube shape | Star |
| Properties | Meet the requirements of EC 89/392 EEC, Comply with safety standard EN12965, CE marking awarded |
| Protection type | PG25 |
| Size code | P500 |

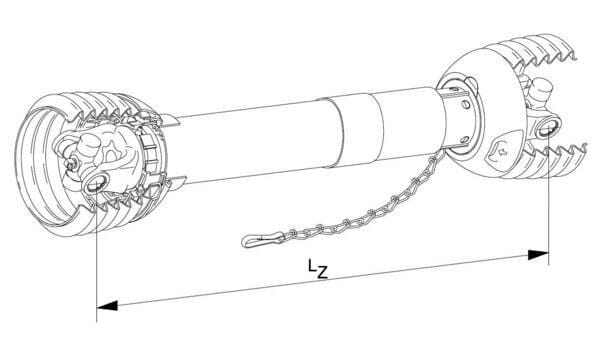

| Technical info | Follow the Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at a working angle of 5° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 27400 g |
| Dimensions | 1260 × 180 × 180 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000156803
Walterscheid Belleville spring 3,9mm 661222
£107.34 excl.
£128.81 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000178332
Walterscheid Carry plate Ball coupling 80 mm 8004871
£2,407.03 excl.
£2,888.44 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000173893
Walterscheid Profile tube lemon Ov diameter in: 32 diameter out: 40x34.5x4mm L: 2.9m 751100
£107.44 excl.
£128.92 incl.
In stock
Expected to ship on Friday 25 September
Free shipping
BPA000400144
Walterscheid Wide angle PTO half shaft, inner WW 2480 L: 1210mm, WWZ24801210I
£755.56 excl.
£906.67 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000144232
Walterscheid Flange hub K90 1.3/8-21 spline 569006
£484.33 excl.
£581.20 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000098670

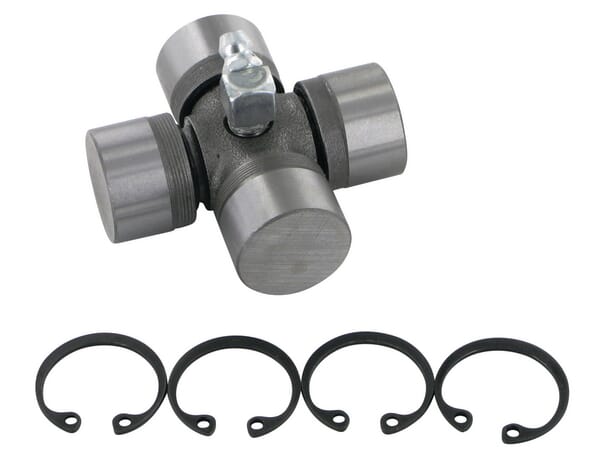

Walterscheid Cross journal diameter 36x89mm 2500 3600142
