Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Silage wagon |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint bush diameter by tractor side - longer part | 27 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by machine side - longer part | 94 mm |
| Cross joint length by tractor side | 76 mm |
| Cross joint length by tractor side - longer part | 94 mm |
| Inner tube large outside diameter | 49 mm |
| Inner tube profile | 1bGA |
| Inner tube wall thickness | 4.5 mm |

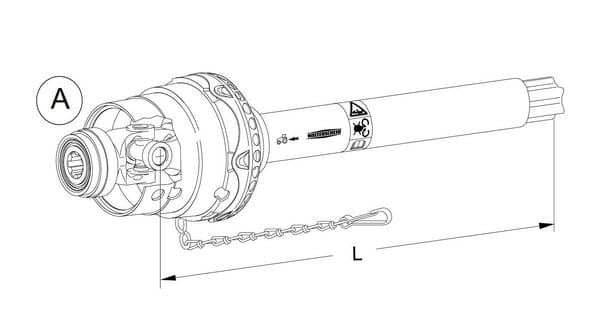

| Length | 1134 mm |
| Locking type by machine side | n/a |
| Locking type by tractor side | Automatic collar lock |
| Max static torque | 4000 N·m |
| Original number equivalent | 1113193 |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 39 kW |
| Profile tube shape | Lemon |
| Properties | Tractor-side 1–3/8" (6) shaft collar kit, Lubrication interval: 8 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Protection type | SD25 |
| Size code | WWZ 2480 |
| Technical info | Working angle with continuous use maximum 25º, Working angle may only reach 80º briefly, Max. dynamic capacity 540 rpm - 39 kW - 695 Nm, Max. dynamic capacity 1000 rpm - 61 kW - 580 Nm, Values at working angle 10° and service life 1000 hours |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 16760 g |
| Dimensions | 1170 × 230 × 230 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400145

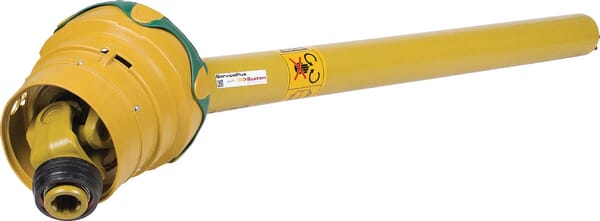

Walterscheid Wide angle PTO half shaft, inner WW 2480 L: 1210mm, WWZ24801210IS4LGA
£764.53 excl.
£917.44 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000096108
Walterscheid Yoke, Hub, 50mm, W2500/P500 3622134
£263.80 excl.
£316.56 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000244752
Walterscheid Mechanism complete Cramer CK32000160
£112.43 excl.
£134.92 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000343889
Walterscheid PTO inner half guard PG20, L: 1,000mm PG201000IWWZFLEX
£162.93 excl.
£195.52 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000356768

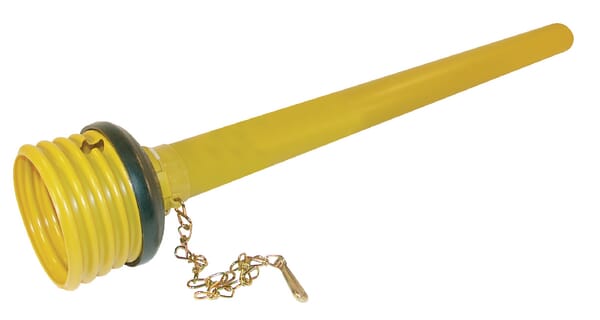

Walterscheid PTO outer half guard diameter 135, L: 550mm SD05550A
£54.47 excl.
£65.36 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000155808

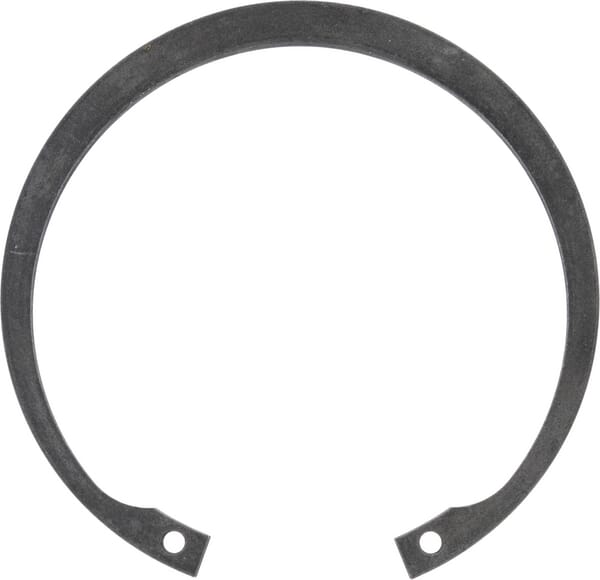

Walterscheid Circlip internal 115x4mm DIN472 622900
