£417.26
excl. VAT
£500.71 incl. VAT
£500.71
incl. VAT
£417.26 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Small crop sprayers, Tedders, Windrowers |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 22 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 55 mm |
| Cross joint length by tractor side | 55 mm |
| Inner tube large outside diameter | 31 mm |
| Inner tube profile | OOcH |
| Inner tube wall thickness | 3.4 mm |
| Length | 1210 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | PTO drive shafts complete standard series W 2100 |
| Max static torque | 1150 N·m |
| Original number equivalent | 1800041 |
| Outer tube large outside diameter | 39 mm |
| Outer tube profile | Oa |
| Outer tube wall thickness | 2.8 mm |
| Power 1000 rpm | 18 kW |
| Power 540 rpm | 12 kW |
| Profile tube shape | Lemon |
| Properties | Tension side 1-3/8" (6) shaft collar kit, Machine side 1-3/8" (6) slide pin, Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available |
| Protection type | SD05 |
| Size code | W2100 |

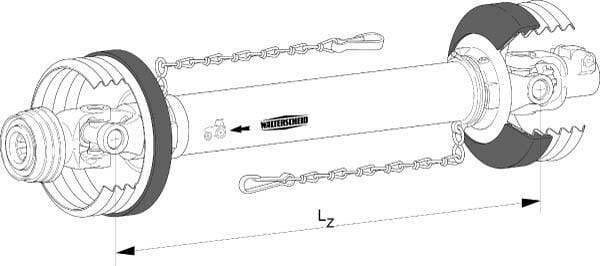

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 12 kW, 210 Nm, Max. dynamic capacity 1000 rpm: 18 kW, 175 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9100 g |
| Dimensions | 1400 × 150 × 150 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000084712
Walterscheid Fork rod for ASST-B 309963
£210.53 excl.
£252.64 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000095379

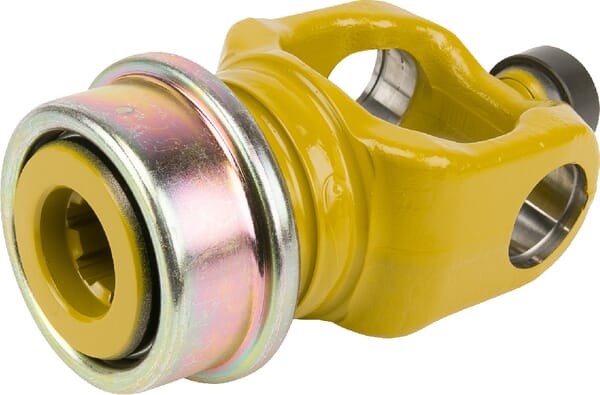

Walterscheid Yoke, quick disconnect, 1-3/8"-6 spline, P580 3683310M
£396.72 excl.
£476.06 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000067483
Walterscheid Yoke, Double, W2300/P300/W300E 212600
£101.81 excl.
£122.17 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000178325
Walterscheid Trailer coupling 140x80mm 8004734
£792.55 excl.
£951.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000143966

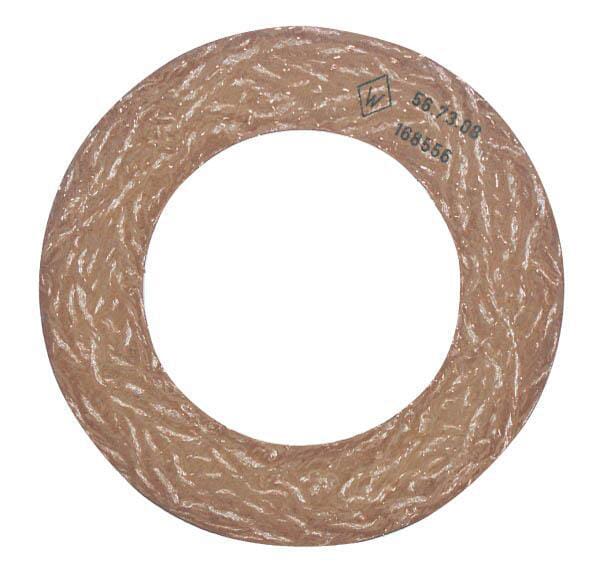

Walterscheid Friction disc diameter 100x152x3mm 567321
