£594.51
excl. VAT
£713.41 incl. VAT
£713.41
incl. VAT
£594.51 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

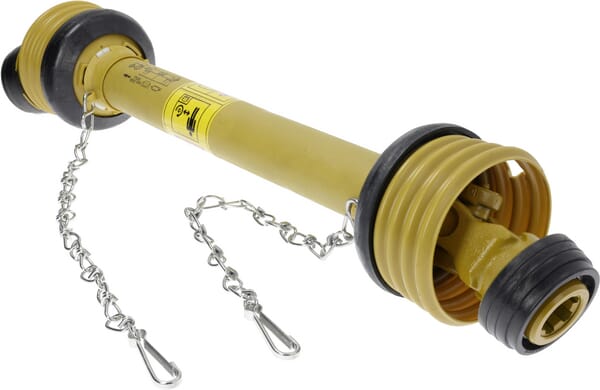

Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4LH |
| Inner tube wall thickness | 6 mm |
| Length | 860 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max static torque | 4000 N·m |
| Original number equivalent | 1800064 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 39 kW |
| Profile tube shape | Star |
| Protection type | ST25 |
| Size code | W2400 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 17700 g |
| Dimensions | 1110 × 165 × 165 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000146542

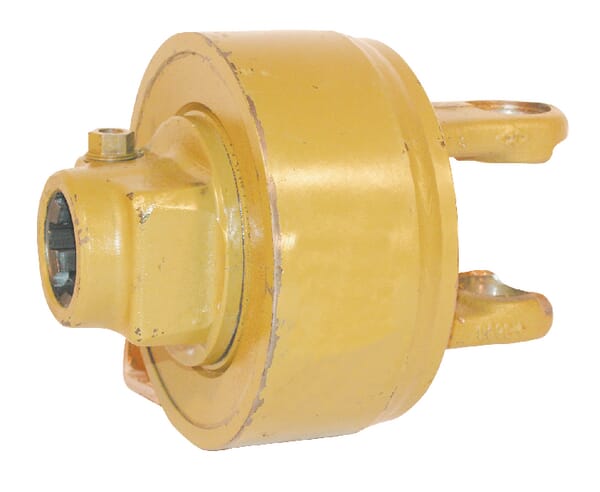

Walterscheid Cam clutch K64/24R 270daNm 5910844270
£1,772.02 excl.
£2,126.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000143646

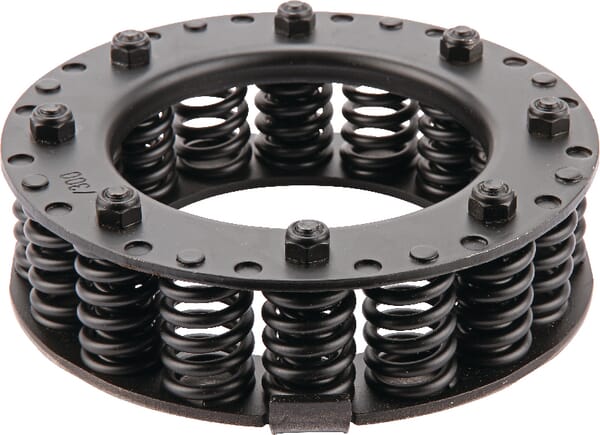

Walterscheid Spring pack K97/4 300daNm 564500300
£250.89 excl.
£301.07 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000084695

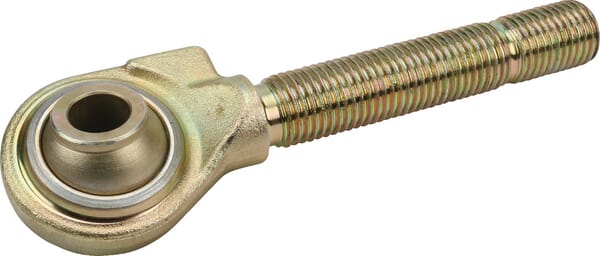

Walterscheid Toplink spindle M30x3,5 22,2x220 mm 309683
£165.93 excl.
£199.12 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000052603
Walterscheid Guard cone 1605256
£178.41 excl.
£214.09 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000244827

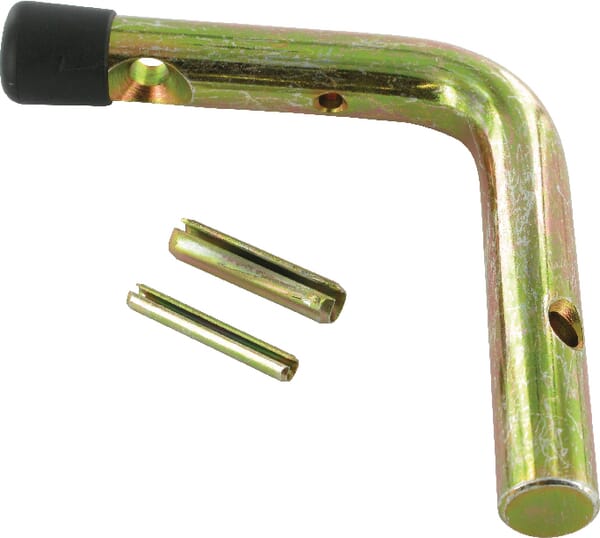

Walterscheid Lever 9100/9400 Cramer CK494005710
