£500.68
excl. VAT
£600.82 incl. VAT
£600.82
incl. VAT
£500.68 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Attachment machine side | Shear bolt clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | KB61/20 |
| Connection outside diameter machine side inch and splines | 1.3/4-20 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4 |
| Length | 1110 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Automatic collar lock |
| Max. clutch torque | 3330 N·m |
| Max static torque | 6000 N·m |
| Original number equivalent | 1620305 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 102 kW |
| Power 540 rpm | 66 kW |
| Profile tube shape | Star |
| Protection type | ST25 |
| Size code | W2500 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 27133 g |
| Dimensions | 1225 × 190 × 190 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000065228
Walterscheid Yoke, Hub, 25mm, W2200/W200E 201511
£141.48 excl.
£169.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000356956
Walterscheid PTO inner half guard diameter 160, L: 1,000mm SD251000ID160
£79.84 excl.
£95.81 incl.
In stock
Expected to ship on Friday 18 September
BPA000034714
Walterscheid Switching spring 1182305
£67.14 excl.
£80.57 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000178381

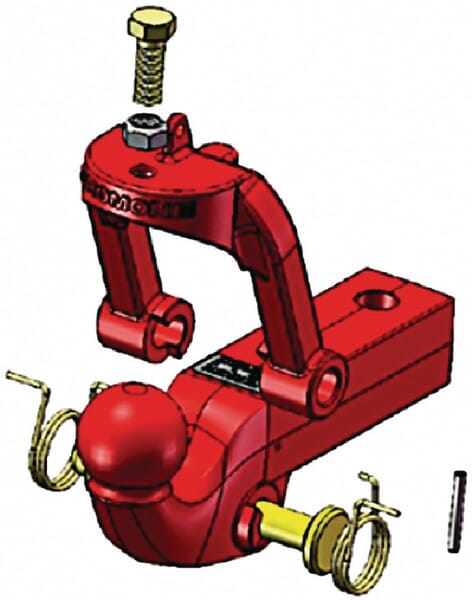

Walterscheid 80mm ball drawbar insert 8005731
£1,644.42 excl.
£1,973.30 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144635

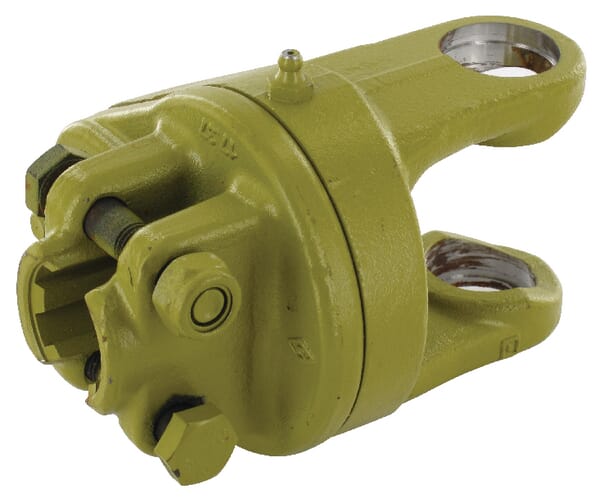

Walterscheid Shearbolt clutch KB61/20 5716718
£586.15 excl.
£703.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000188810

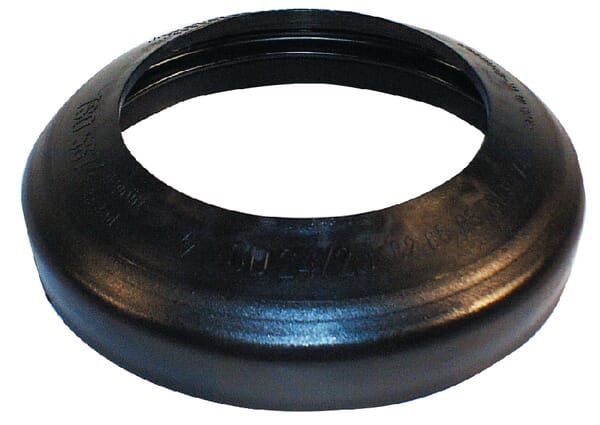

Walterscheid Reinforcing ring SD35 828507
