£1,410.79
excl. VAT
£1,692.95 incl. VAT
£1,692.95
incl. VAT
£1,410.79 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Attachment machine side | Cam type cut out clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | K64/22R |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4 |
| Length | 710 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 2200 N·m |
| Max static torque | 6000 N·m |
| Original number equivalent | 1691387 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 102 kW |
| Power 540 rpm | 66 kW |
| Profile tube shape | Star |
| Protection type | SD25 |
| Size code | W2500 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 33220 g |
| Dimensions | 1065 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400863
Walterscheid PTO shaft W2500 L: 710mm with cam type cut out clutch, W25007105912743
£1,154.65 excl.
£1,385.58 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000142978

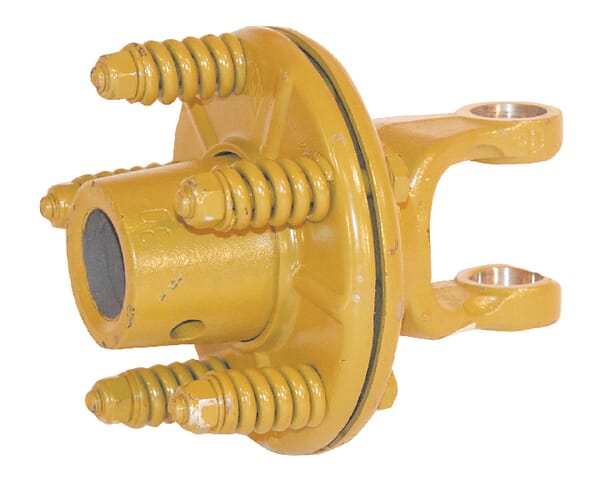

Walterscheid K94/1 Friction clutch 561041930
£277.43 excl.
£332.92 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000342526

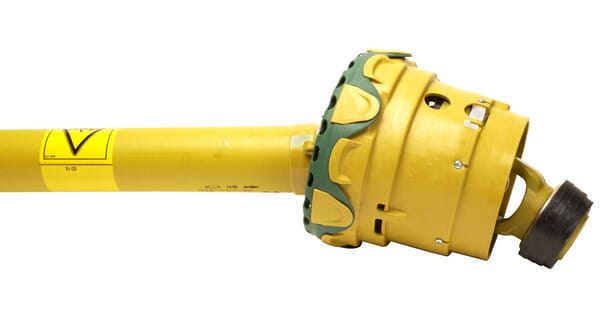

Walterscheid Wide angle PTO half shaft inner PWZ5801210I
£1,198.32 excl.
£1,437.98 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000065244

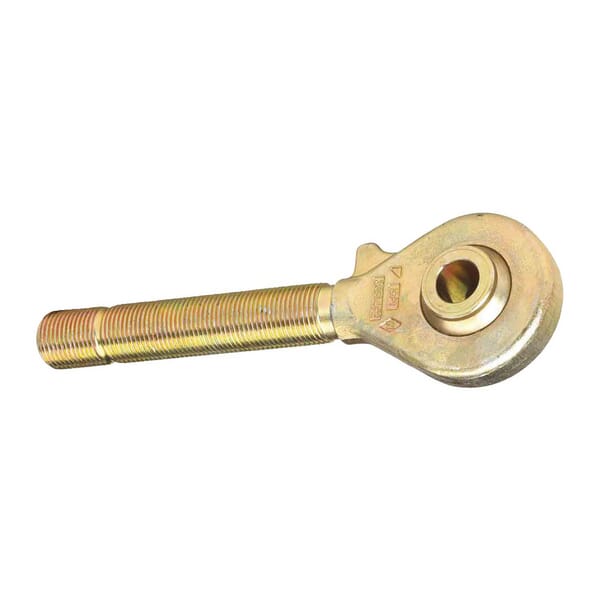

Walterscheid Toplink spindle 1.3/4-5UNC L cat.3 201539
£268.06 excl.
£321.67 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000067301

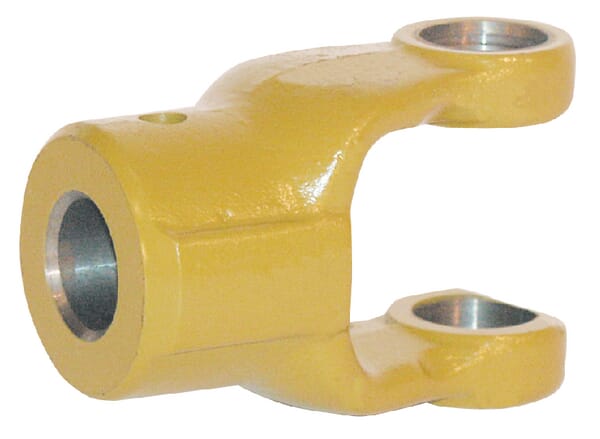

Walterscheid Yoke, Hub, 25mm, W2300/P300/W300E 211507
£230.35 excl.
£276.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000076005

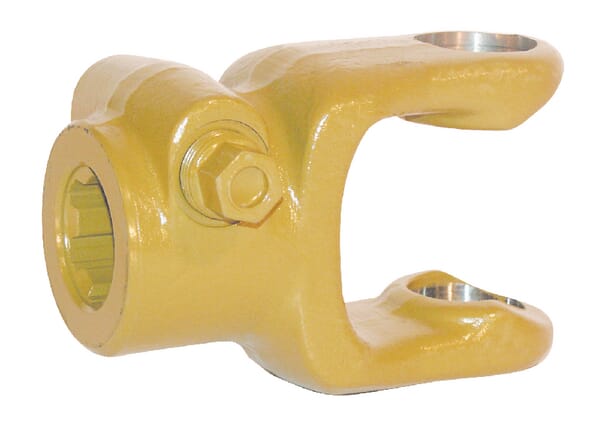

Walterscheid Yoke, Clamp bolt, 1-3/4"-20 spline, W2600/P600 261832
