£1,272.38
excl. VAT
£1,526.86 incl. VAT
£1,526.86
incl. VAT
£1,272.38 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Slurry tank, Crop sprayers, Drawn hay processing machine |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | Wide angle pto-shaft, 2 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 24 mm |
| Cross joint bush diameter by tractor side | 24 mm |
| Cross joint bush diameter by tractor side - longer part | 22 mm |
| Cross joint length by machine side | 61 mm |
| Cross joint length by tractor side | 61 mm |
| Cross joint length by tractor side - longer part | 76 mm |
| Inner tube profile | OvGA |
| Length | 1210 mm |
| Max static torque | 1750 N·m |
| Original number equivalent | 1800129 |
| Outer tube profile | 1G |
| Properties | Tractor side 1-3/8" Z6 shaft collar kit, Device side 1-3/8" Z6 slide pin, Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | SD15 |
| Size code | WWZ 2280 |

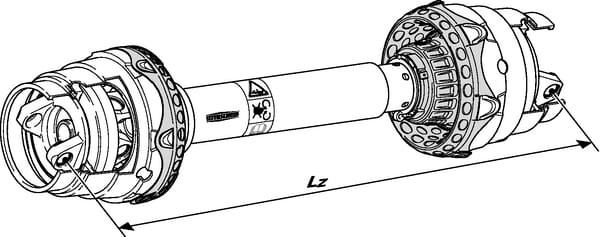

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 20 kW, 335 Nm, Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 17500 g |
| Dimensions | 1300 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400822
Walterscheid PTO shaft W2400 L: 1010mm, W24001010
£444.92 excl.
£533.91 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000143580

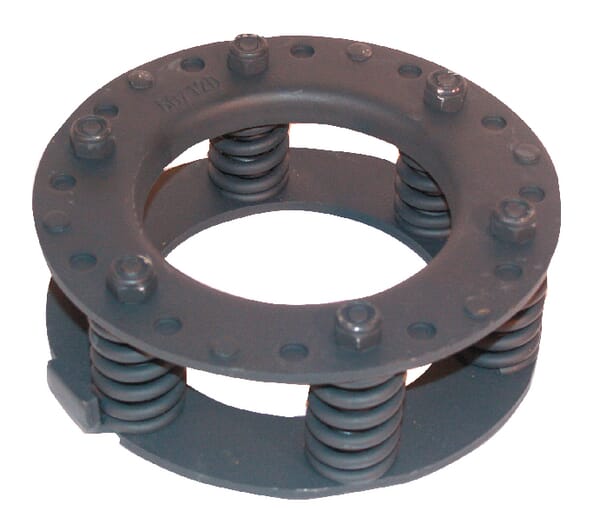

Walterscheid Spring set K96 60/120 daNm 56350160120
£186.89 excl.
£224.27 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000400719
Walterscheid PTO shaft W2100 L: 1210mm, W21001210
£417.26 excl.
£500.71 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000400720

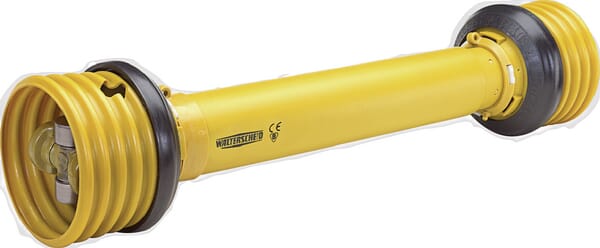

Walterscheid PTO shaft without yokes W2100 L: 1210mm, W21001210OG
£328.41 excl.
£394.09 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000143575
Walterscheid Spring set K96/4 135 daNm 563501135
£165.57 excl.
£198.68 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000038099

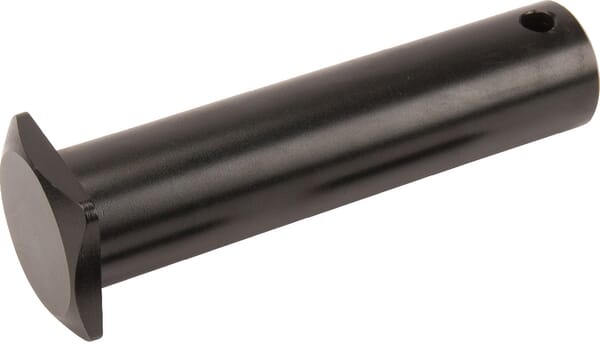

Walterscheid Pin GKN 1206440
