£431.57
excl. VAT
£517.88 incl. VAT
£517.88
incl. VAT
£431.57 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mowers, Fertiliser mixers, Seeders |
|---|---|
| Attachment machine side | Shear bolt clutch |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | KB61/20 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with joint and guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by tractor side | 75 mm |
| Inner tube large outside diameter | 40 mm |
| Inner tube profile | Ov |
| Inner tube wall thickness | 4 mm |
| Length | 1010 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 1600 N·m |
| Max static torque | 2200 N·m |
| Original number equivalent | 1800028 |
| Outer tube large outside diameter | 48 mm |
| Outer tube profile | 1 |
| Outer tube wall thickness | 3 mm |
| Power 1000 rpm | 31 kW |
| Power 540 rpm | 20 kW |
| Profile tube shape | Lemon |
| Properties | Tractor side 1-3/8" (6) shaft collar kit, Machinery side 1-3/8" (6) quick release coupling, Lubrication interval: 8 hours, CE marking awarded |
| Protection type | SD15 |
| Size code | W300E |
| Technical info | Follow the Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm, Values at a working angle of 5° and service life 700 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 15030 g |
| Dimensions | 1250 × 170 × 170 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000146675
Walterscheid Cam clutch K64/22R 5912743180
£1,476.54 excl.
£1,771.85 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000143399
Walterscheid Freewheeling clutch W2500 1 3/4 Z6 5623940
£505.35 excl.
£606.42 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000172642
Walterscheid Profile tube coated star S4LGA diameter in: 39 diameter out: 51x37x6mm L: 1m 7543911000
£170.38 excl.
£204.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000172256

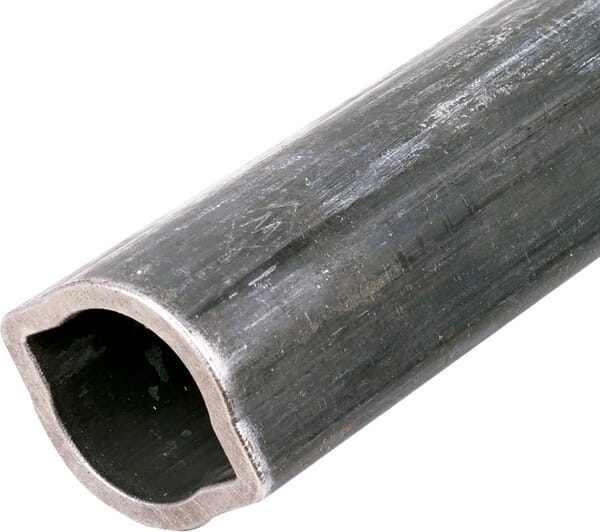

Walterscheid Profile tube hardened lemon 1bH diameter in: 40 diameter out: 49x39.5x4.5mm L: 1.4m 75251861400
£220.93 excl.
£265.12 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000342531

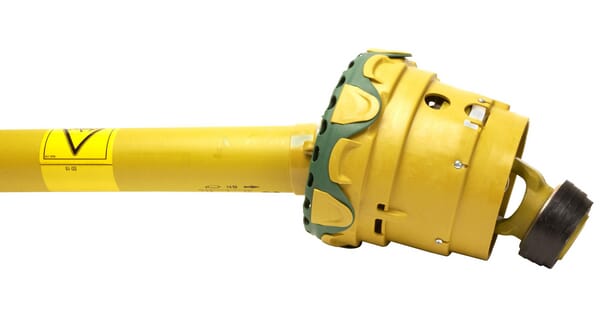

Walterscheid Wide angle PTO half shaft, inner PWH 580 L: 1610mm, PWZ5801610I
£1,325.59 excl.
£1,590.71 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000029112

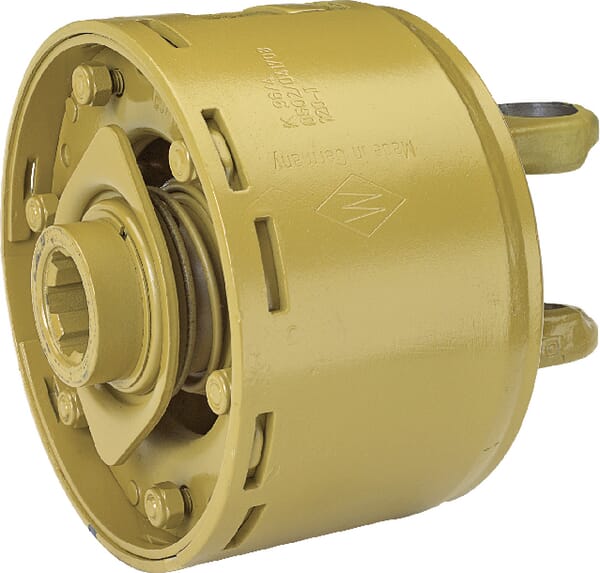

Walterscheid Friction clutch 1101742
