£438.92
excl. VAT
£526.70 incl. VAT
£526.70
incl. VAT
£438.92 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mowers, Harvesters, Fertiliser mixers |
|---|---|
| Attachment machine side | Overrunning clutch |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | F5/1R |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with joint and guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Inner tube large outside diameter | 49 mm |
| Inner tube profile | 1b |
| Inner tube wall thickness | 4.5 mm |
| Length | 1010 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max static torque | 3400 N·m |
| Original number equivalent | 1800036 |
| Outer tube large outside diameter | 57.5 mm |
| Outer tube profile | 2a |
| Outer tube wall thickness | 4 mm |
| Power 1000 rpm | 44 kW |
| Power 540 rpm | 28 kW |
| Profile tube shape | Lemon |
| Properties | Tractor side 1-3/8" (6) shaft collar kit, Machinery side 1-3/8" (6) quick release coupling, Lubrication interval: 8 hours, CE marking awarded |
| Protection type | SD25 |
| Size code | W400E |
| Technical info | Follow the Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at a working angle of 5° and service life 700 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 19700 g |
| Dimensions | 1250 × 250 × 180 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000143026

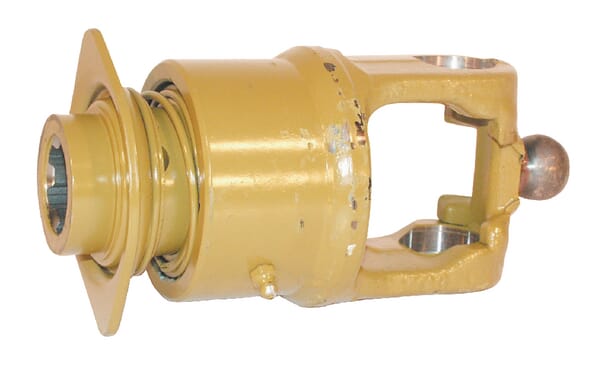

Walterscheid Overrunning clutch w.a. 2500 F5/1 5612340
£951.52 excl.
£1,141.82 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000074890

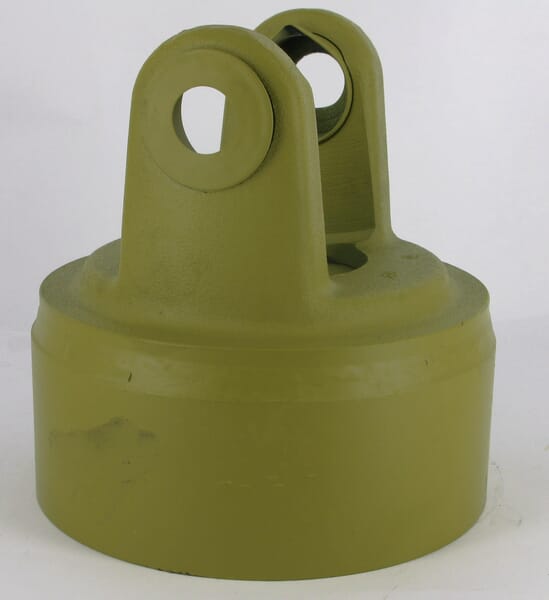

Walterscheid Yoke for clutch K64/22-24L, W2600/P600 269016
£802.52 excl.
£963.02 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000146641
Walterscheid Cam clutch K64/22R 5911743200
£1,459.59 excl.
£1,751.51 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000098877

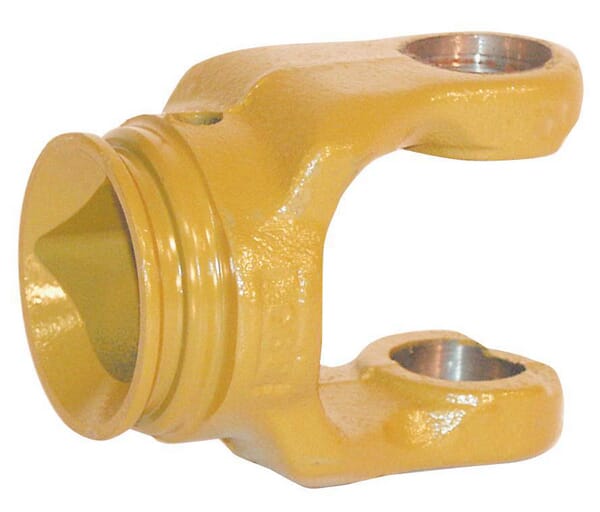

Walterscheid Yoke, Profile tube, 39.5mm, W2500/P500 361300
