£587.66
excl. VAT
£705.19 incl. VAT
£705.19
incl. VAT
£587.66 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mowers, Harvesters, Soil cultivating machinery |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual, Delivered without yokes |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Details | Dispense duration: 100–250 hours, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube profile | S4LH |
| Length | 810 mm |
| Max static torque | 4000 N·m |
| Original number equivalent | 1113136 |
| Outer tube profile | S5 |
| Properties | Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG20 |
| Size code | P400 |

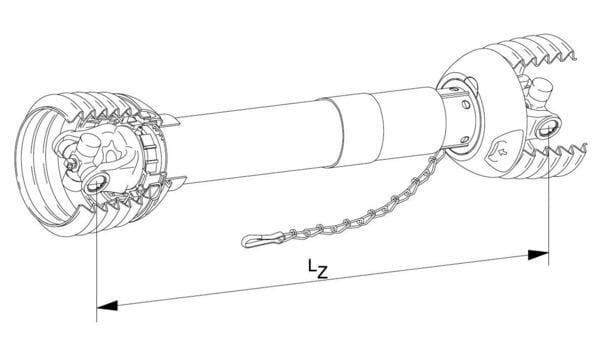

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 5° and service life 1000 hours, LZ = closed length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | 8435194017572 |
|---|---|
| Unit of measure | EA |
| Weight | 14700 g |
| Dimensions | 1030 × 200 × 200 mm |
| Dangerous goods | No |
