£793.61
excl. VAT
£952.33 incl. VAT
£952.33
incl. VAT
£793.61 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Silage wagon |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint bush diameter by tractor side - longer part | 27 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by machine side - longer part | 94 mm |
| Cross joint length by tractor side | 76 mm |
| Cross joint length by tractor side - longer part | 94 mm |
| Extra info | Do not use this product at a speed of 1000 rpm. Also consult one of our product specialists for advice. |
| Inner tube profile | 1bGA |

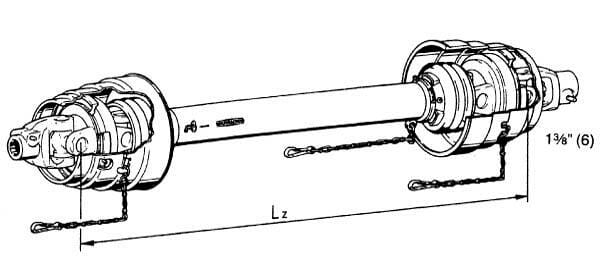

| Length | 1580 mm |
| Locking type by tractor side | Automatic collar lock |
| Original number equivalent | 1695401 |
| Properties | Tractor-side 1–3/8" (6) shaft collar kit, Lubrication interval: 8 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Protection type | SD25 |
| Size code | WWZ 2480 |
| Technical info | Working angle with continuous use maximum 25º, Working angle may only reach 80º briefly, Max. dynamic capacity 540 rpm - 39 kW - 695 Nm, Max. dynamic capacity 1000 rpm - 61 kW - 580 Nm, Values at working angle 10° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 18450 g |
| Dimensions | 1600 × 260 × 260 mm |
| Dangerous goods | No |
You might also like
BPA000027017
Walterscheid Yoke, profile tube, 23.5mm 104800
£48.51 excl.
£58.21 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000024897

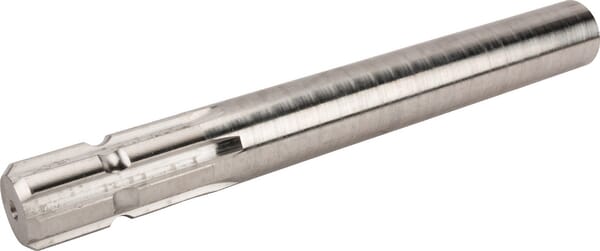

Walterscheid Profile 1042880
£156.51 excl.
£187.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000342472
Walterscheid Wide angle PTO shaft PWE 580 PWE580910138211346
£1,852.74 excl.
£2,223.29 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000066840
Walterscheid Yoke, quick disconnect, 1-3/8"-21 spline, W2300/P300/W300E 218332
£140.82 excl.
£168.98 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000052250
Walterscheid Splined hub 13/8+flange+clamp 160104
£164.92 excl.
£197.90 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000146474

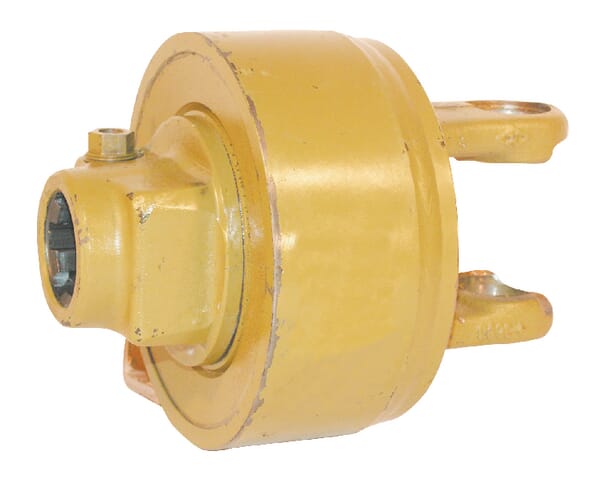

Walterscheid Cam clutch K64/14R 165daNm 5910042165
