£1,309.90
excl. VAT
£1,571.88 incl. VAT
£1,571.88
incl. VAT
£1,309.90 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Loader wagons |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual, Delivered without yokes, Delivered without cross journal on the wide angle side |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint bush diameter by tractor side - longer part | 27 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Cross joint length by tractor side - longer part | 94 mm |
| Details | Robust, radial spherical plain bearing integrated in centring system, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube profile | S4LGA |
| Length | 1210 mm |
| Locking type by machine side | Cross |
| Locking type by tractor side | Wide angle without UJ |
| Max static torque | 3000 N·m |
| Original number equivalent | 1113260 |
| Outer tube profile | S5 |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 39 kW |
| Profile tube shape | Star |
| Properties | Lubrication interval: max. 60 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG25 |
| Size code | PWE 480 |

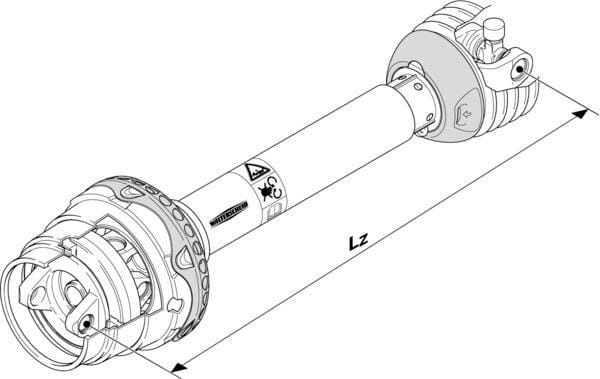

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 10° and service life 1000 hours, LZ = closed length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 26000 g |
| Dimensions | 1300 × 250 × 250 mm |
| Dangerous goods | No |
You might also like
BPA000178326
Walterscheid Washer plate 8004740
£65.48 excl.
£78.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000025945
Walterscheid Hexagonal screw 1020443
£3.81 excl.
£4.57 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000084341
Walterscheid Lever type B cat.2L 306257
£86.11 excl.
£103.33 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000400804

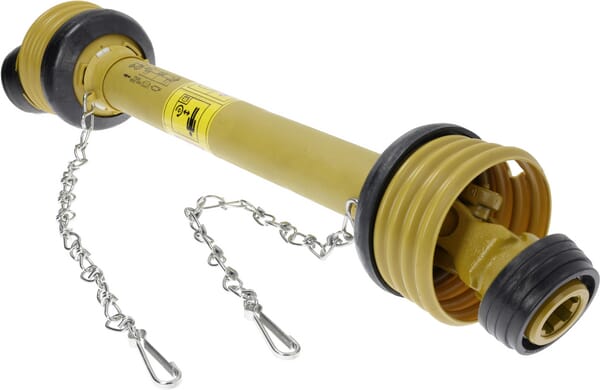

Walterscheid PTO shaft W2300 L: 1210mm, W23001210
